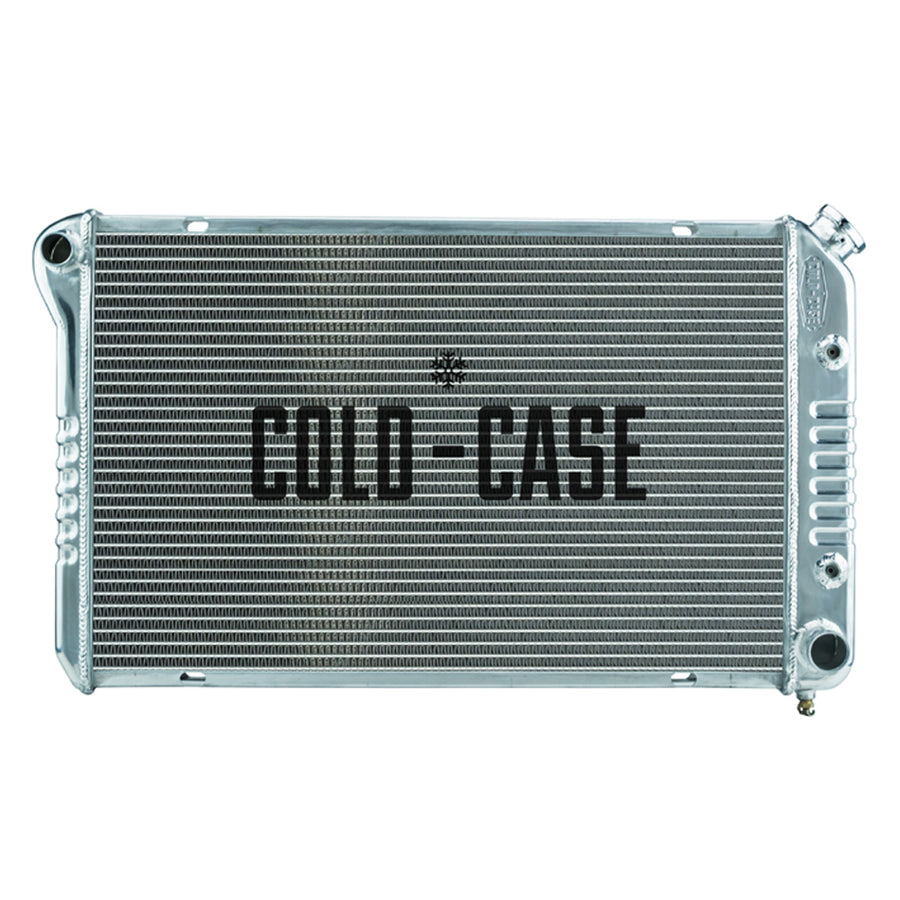

1984-1987 Buick Regal Grand National Aluminum Performance Radiator. AT Cars. This radiator has the correct oil and trans fittings used on the 86-87 models, unlike other reproductions on the market. You will need to modify part of the radiator support in order for this radiator to fit. See picture above.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 84-87 Turbo Regal GN
- Old Part Number: RPE57
Radiator Specs
- Core Height 16.75 inch
- Core Width 26 inch
- Overall Height 18.5 inch
- Overall Width 32 inch
- Overall Thickness 3 inch
- Upper Hose 1.25 inch
- Lower Hose 1.5 inch
- Tubes (2) 1.25 inch Tubes
COLD-CASE Radiators 84-87 Grand National Regal Turbo Aluminum Radiator Cold Case Radiators GMB57A
Specifications:
| Country of Origin | CHN |
| Sold As | Each |
| UPC | 846861012451 |
| Availability | Available |
| Thickness | 3.0 Inch |
| Universal | No |
| Fits | 84-87 Turbo Regal |
| Overall Width | 32 Inch |
| Old Part Number | RPE57 |
| Core Height | 16.75 Inch |
| Core Width | 26 Inch |
| Overall Height | 18.5 Inch |
| Upper Hose | 1.25 Inch |
| Lower Hose | 1.5 Inch |
| Fins Per Inch | 16 |
| Trans Cooler Fitting Size | 1/8 Inch National Pipe Thread |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1984 | Buick | Regal | T-Type | |
| 1985 | Buick | Regal | T-Type | |
| 1986 | Buick | Regal | T-Type | |
| 1984 | Buick | Regal | Grand National | |
| 1985 | Buick | Regal | Grand National | |
| 1986 | Buick | Regal | Grand National | |
| 1987 | Buick | Regal | Grand National | |
| 1987 | Buick | Regal | GNX |
