Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

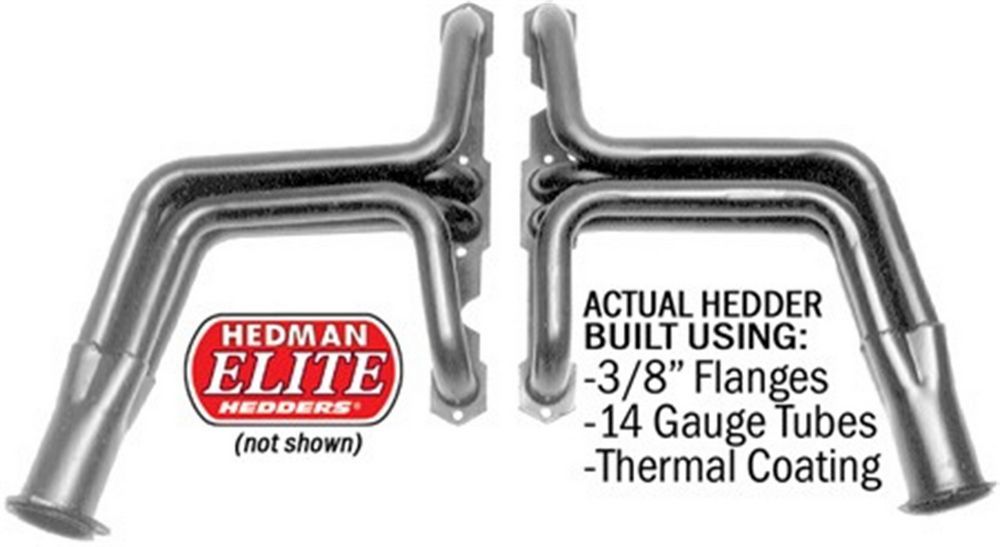

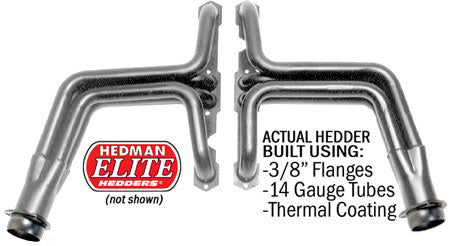

This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8 in. flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.

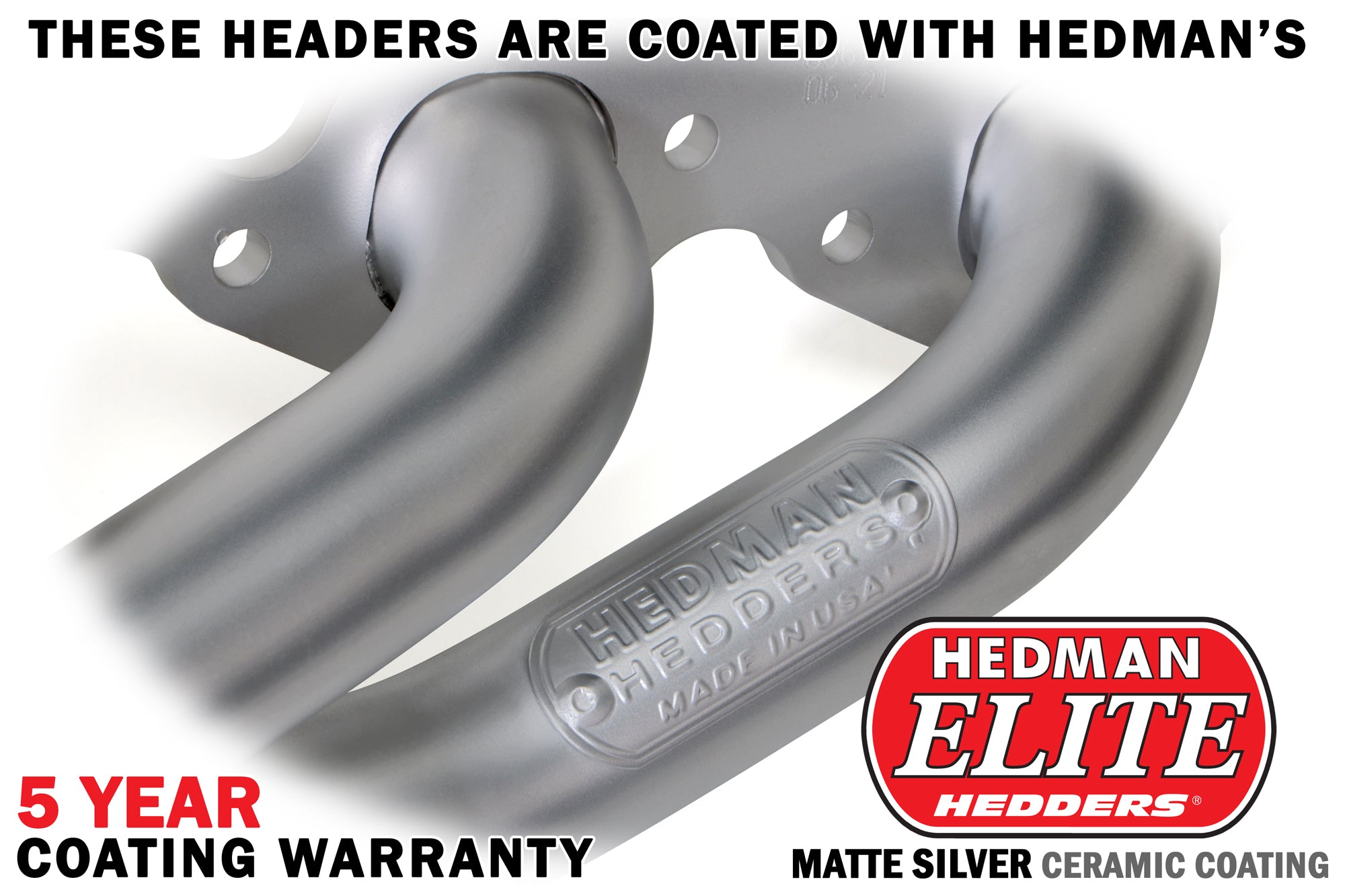

ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.
These LONG-TUBE headers fit 1955-1966 2WD (only) 1/2 and 3/4 ton Chevy Trucks wish a Small Block Chevy powerplant (check the application listings for exact fitment). The smooth 1-1/2 in. tube design provides ample exhaust flow to let your classic truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

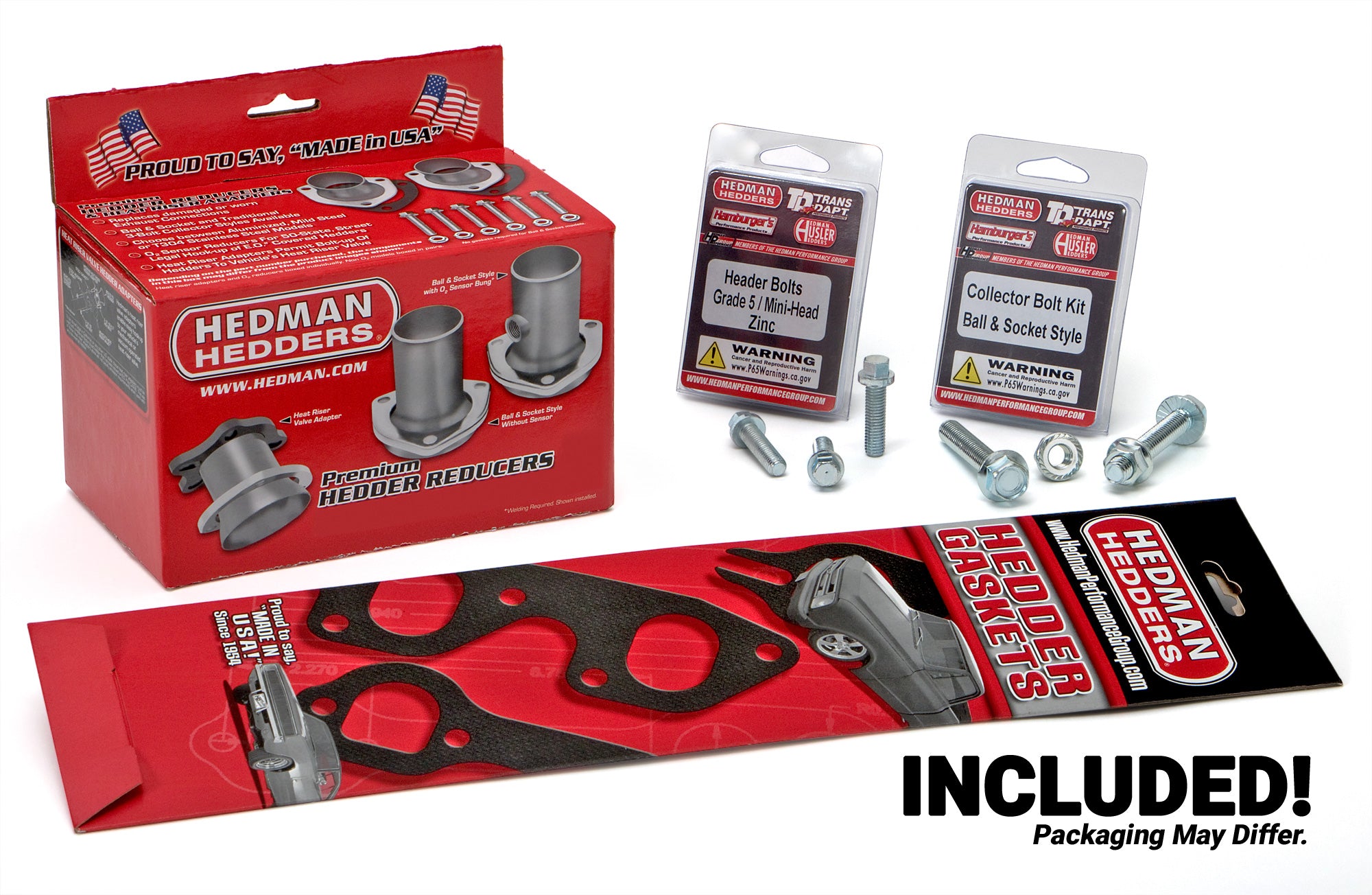

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Hedman Hedders ELITE Hedders; 1-1/2 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design 69268
Specifications:
| Description_DEF | [B@fd53bd5 |
| Description_DES | [B@5a35d92 |
| Description_EXT | [B@585acbc3 |
| Description_FAB | [B@19d22dec |
| Description_FAB | [B@3f7fa690 |
| Description_FAB | [B@20af2320 |
| Description_FAB | [B@2e25e025 |
| Description_FAB | [B@26901540 |
| Description_FAB | [B@64197c24 |
| Description_INV | [B@3d76f5a4 |
| Description_MKT | [B@3c531ee7 |
| Description_SHO | [B@1acf3638 |
| Title | HEDMAN HEDDERS ELITE HEADERS; 1-1/2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Tube Diameter | 1-1/2 in. |
| Reducers Included | Yes |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Variations | 69266, 69268 |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 14g |
| Primary Tube Diameter (in) | 1.50 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Matte Silver Ceramic-Metallic |
| Cylinder Head Port Shape | Oval |
| Cylinder Head | Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Header Construction | MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket | 27520 |
| Replacement Head Flange Gasket | 27520 |
| California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System | No |
| Tube Size | 1-1/2 in. |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Material Thickness | 14g |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Flange Thickness | 0.375 in. |
| Exhaust System Dia | 2-1/2 in. |
| Reducer Outlet Size | 2-1/2 in. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Emissions Notes | Legal on 1974 and earlier vehicles when existing emission controls are retained. |
| Header Style | Long Tube |
| Finish | Matte Silver Ceramic-Metallic |
| Finish Type | MATTE SILVER Ceramic-metallic coated |
| E.O. # | No |
| Port Shape | Oval |
| Header Port Shape | Oval Port |
| Flange Style | Standard |
| Suspension Notes | Will Not Fit Torsion Bar Suspension. |
| Power Steering | Yes |
