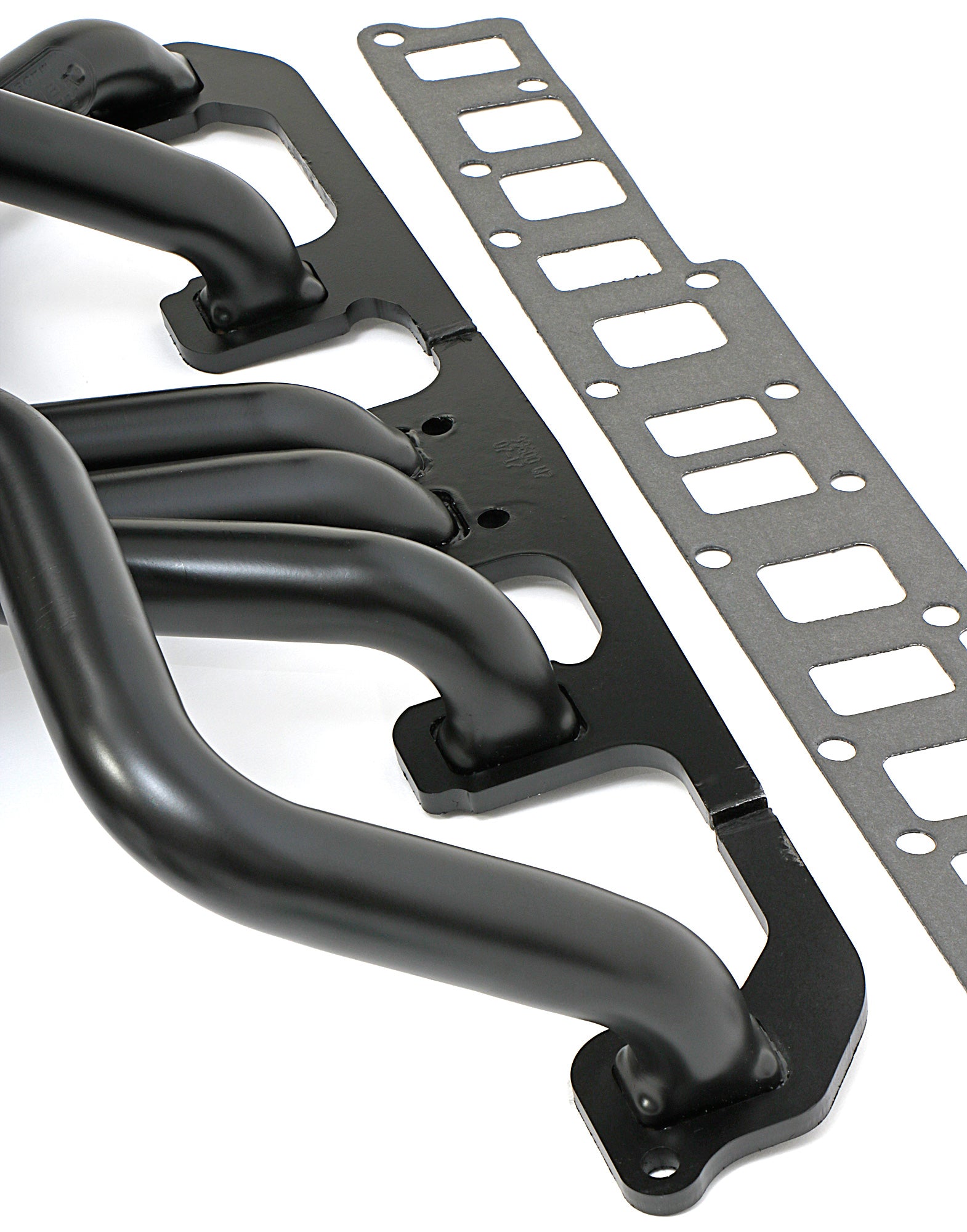

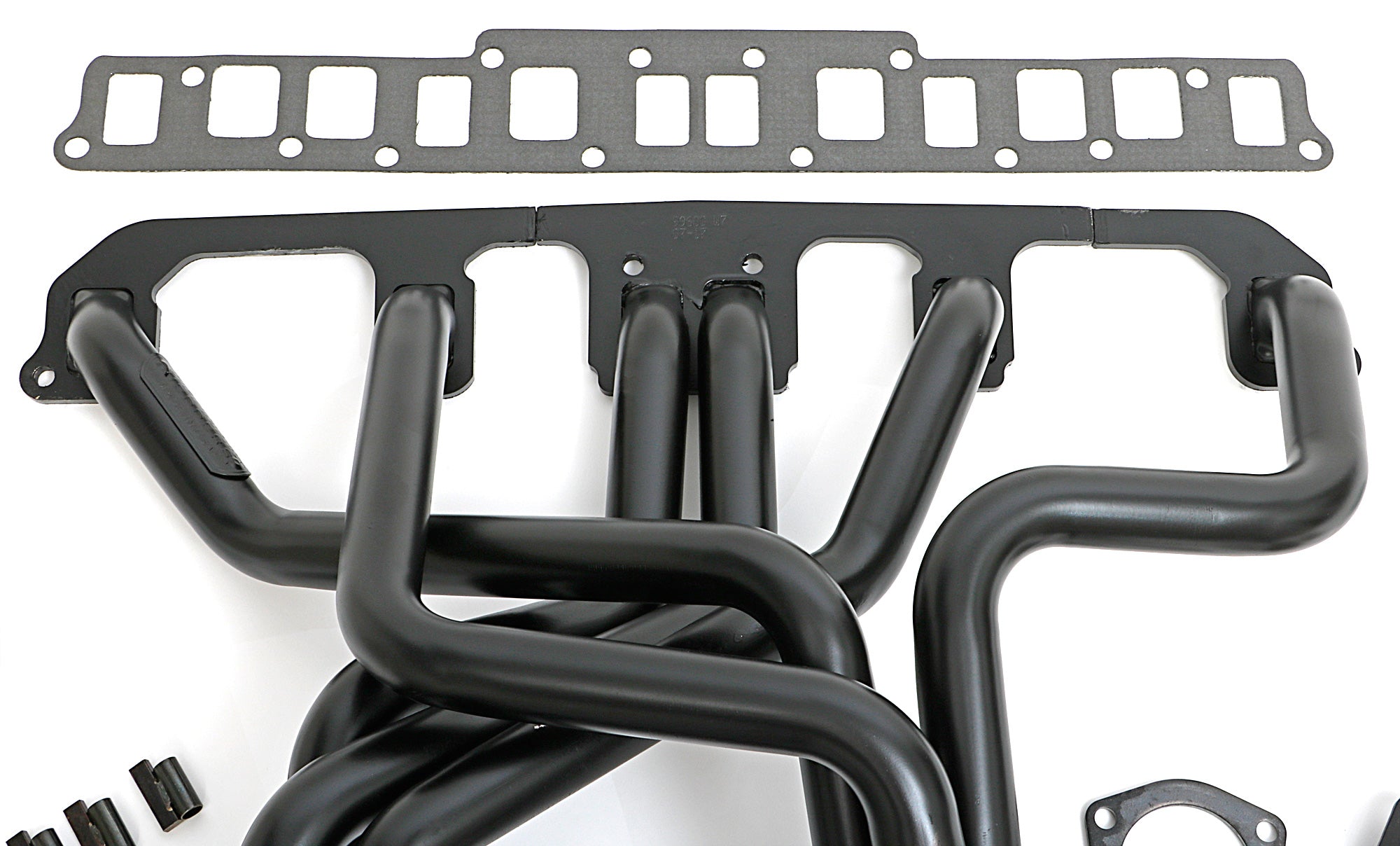

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Inline 6 AMC headers, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE, headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with AMC's "torquey" 232-258 I6 engine. They are compatible with manual transmission setups (only), and the long, smooth 1-1/2 in. tube, dual outlet design provides excellent exhaust flow to let your CJ's Inline 6 AMC engine exhale better, to pull out every bit of available torque and power you down any trail.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

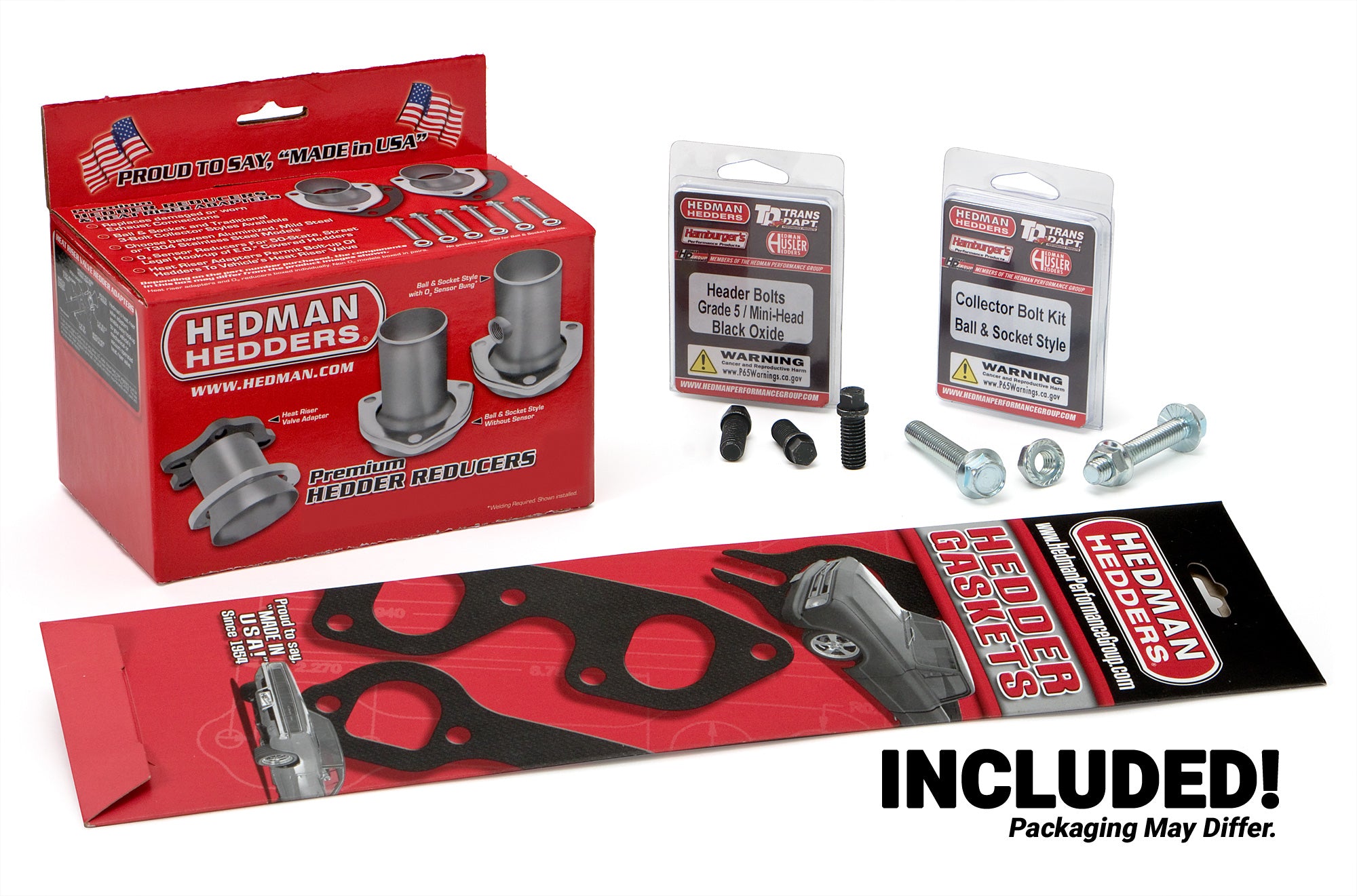

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

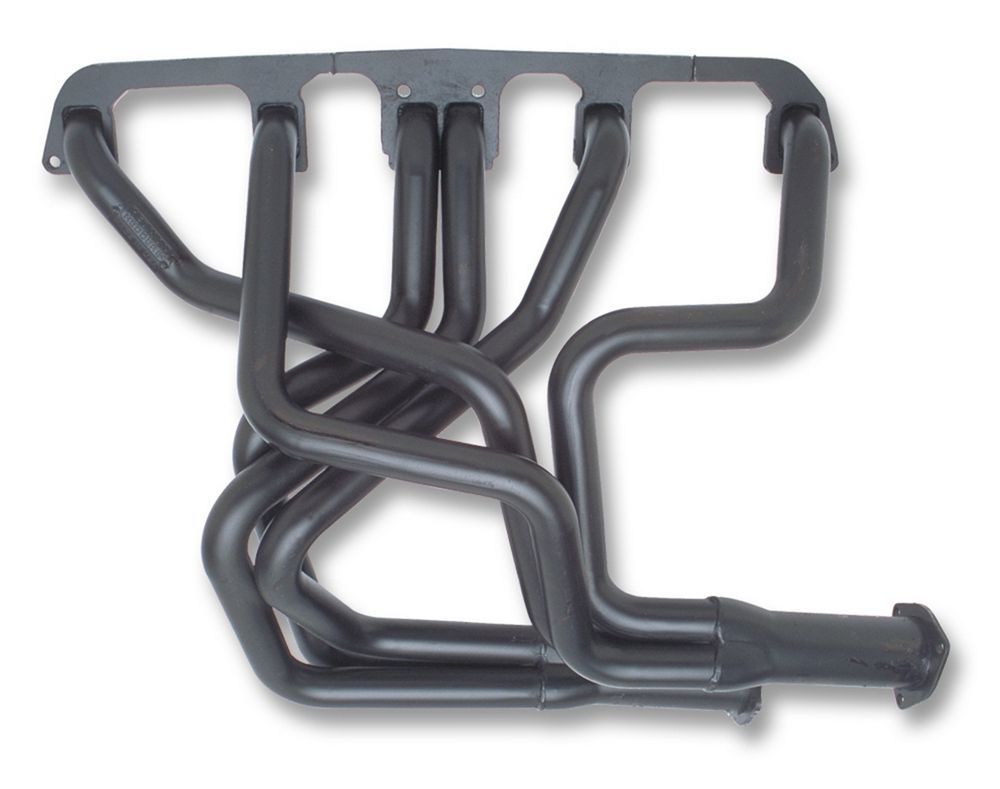

Hedman Hedders Uncoated Dual-Outlet Long-Tube Headers for 72-86 JEEP CJ5, CJ6, CJ7 w/232-258 L6 99600
Specifications:
| Description_DEF | [B@67c22fc9 |
| Description_DES | [B@70aa0e35 |
| Description_EXT | [B@78717f85 |
| Description_FAB | [B@289ea201 |
| Description_FAB | [B@5e546cbc |
| Description_FAB | [B@7eaf0ae5 |
| Description_FAB | [B@d51cfe2 |
| Description_FAB | [B@5082fae3 |
| Description_FAB | [B@2dce5dc3 |
| Description_INV | [B@2bb092bd |
| Description_MKT | [B@289d66f6 |
| Description_SHO | [B@6f0fd4e4 |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; FULL LENGTH DESIGN |
| Tube Diameter | 1-1/2 in. |
| Reducers Included | Yes |
| with EGR | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Y-Pipe Included | No |
| Variations | 99606 |
| Quantity | Sold individually. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.50 in. |

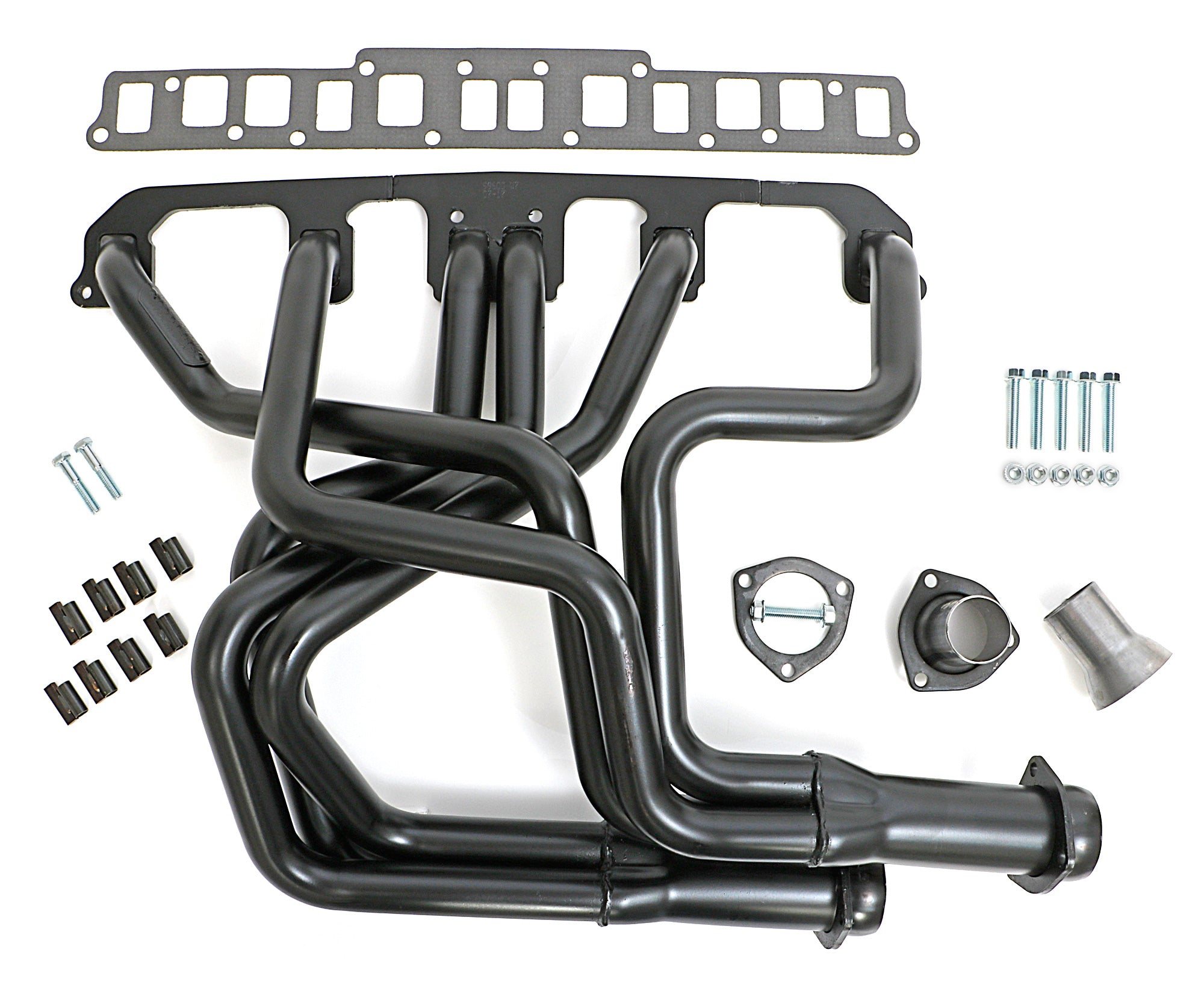

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Rectangle |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27820 |
| Replacement Head Flange Gasket | 27820 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System | No |
| Tube Size | 1-1/2 in. |
| Tube Style | Long Tubes |
| Air Conditioning | Yes |
| Automatic Transmission - Column | No |
| Automatic Transmission - Floor | No |
| Manual Transmission - Column | Yes |
| Manual Transmission - Floor | Yes |
| Tube Material Thickness | 16g |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Long Tubes |
| Flange Thickness | 0.375 in. |
| Exhaust System Dia | 2 in. |
| Reducer Outlet Size | 2 in. |
| Collector Attachment | 2-1/2 in. |
| Collector Diameter | 2-1/2 in. |
| Collector Size | 2-1/2 in. |
| Notes | 72-86 Jeep CJ5, CJ6, CJ7 232-258 |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Header Style | Long Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Header Port Shape | Rectangle |
| Port Shape | Rectangle |
| Flange Style | Standard |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
