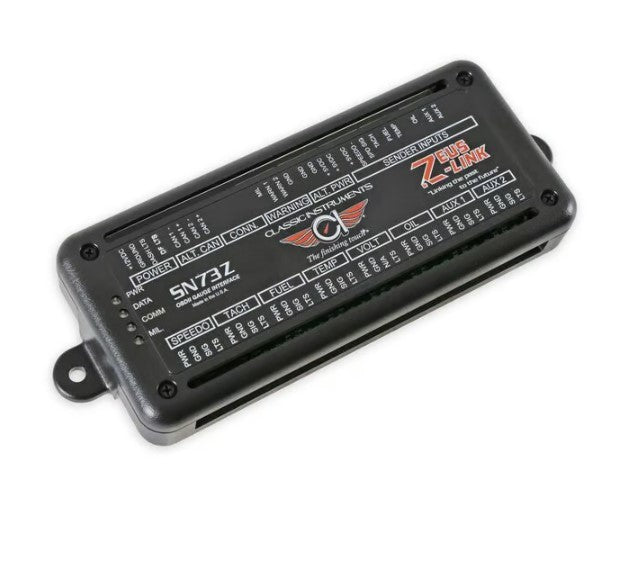

Classic Instruments Zeus-Link Gauge Interface Module SN73Z-S2
Regular Price
$425.95
Zeus-Link™ is an all-inclusive gauge interface unit that can connect to Holley ECU’s (Dominator, HP, Terminator X, Terminator X Max, Sniper and Sniper 2) and to GM OBDII ports, reading vehicle data from CAN BUS to drive any Classic Instruments gauges accurately. Additional pass-through CAN port connection for other CAN devices. Customers can connect up to 6 standard gauges and 2 auxiliary gauges using all sender inputs or none. All instruments can be driven traditionally if the vehicle ECU does not support an output the driver wants to monitor. Unit features warning and check engine light outputs, dash light connection and on-board diagnostic lights to give status of power, BLE, and data. For maximum compatibility with Holley products, there is an additional resistor available if there are other CAN devices on the same harness and the Holley harness has an additional Holley ECU connector for other devices. The entire unit is setup and managed through an app available on the App Store® or Google Play®. Configure which gauges are in the dash, how each gets its signal, view values being received by Zeus-Link™, and verify correct outputs and wiring all through the app.
Classic Instruments Zeus-Link Gauge Interface Module SN73Z-S2
Specifications:
| Description_SHO | Link Gauge |
| Description_INV | ZEUS LINK MODULE FOR S2 OBDII |
| Description_DES | Zeus-Link Gauge Interface Module |
| Description_EXT | Holley ECU Sniper II Compatible |
| Description_MKT | Zeus-Link™ is an all-inclusive gauge interface unit that can connect to Holley ECU’s (Dominator, HP, Terminator X, Terminator X Max, Sniper and Sniper 2) and to GM OBDII ports, reading vehicle data from CAN BUS to drive any Classic Instruments gauges accurately. Additional pass-through CAN port connection for other CAN devices. Customers can connect up to 6 standard gauges and 2 auxiliary gauges using all sender inputs or none. All instruments can be driven traditionally if the vehicle ECU does not support an output the driver wants to monitor. Unit features warning and check engine light outputs, dash light connection and on-board diagnostic lights to give status of power, BLE, and data. For maximum compatibility with Holley products, there is an additional resistor available if there are other CAN devices on the same harness and the Holley harness has an additional Holley ECU connector for other devices. The entire unit is setup and managed through an app available on the App Store® or Google Play®. Configure which gauges are in the dash, how each gets its signal, view values being received by Zeus-Link™, and verify correct outputs and wiring all through the app. |
| Description_FAB | All gauge connections to Zeus-Link (power, ground, signal, dash lights) |
| Description_FAB | Pass-through CAN port connection for other CAN devices |
| Description_FAB | On-board diagnostic lights give status of power, BLE, and data on the circuit board for Zeus-Link |
| Description_FAB | Holley harness has additional Holley ECU connector for other devices |
| Description_FAB | Dash light connection |
| Description_FAB | All instruments can be driven traditionally through proper senders if vehicle ECU does not support an output the driver wants to monitor |
| Description_FAB | Harness plugs direct into Zeus-Link and then to Holley ECU or OBD |
| Description_FAB | The app has a virtual gauge screen, aligning with the dash instruments |
| Description_FAB | Additional resistor dongle available if needed to use multiple Holley CAN devices on the same harness |
| Description_FAB | Warning and check engine light outputs on the Zeus-Link and external contacts to light a dash light |
| Description_FAB | System queries vehicle upon installation to determine what list of parameters can be obtained from the vehicle and used as inputs to gauges |
| Description_FAB | The app has easy diagnostics, displays values being received by Zeus-Link and will allow user to cycle gauges to predetermined positions, to verify correct outputs and wiring |
| Description_FAB | Compatible with all Classic Instruments sending units and gauges |
| Description_FAB | The app is used to configure by choosing which gauges a customer has in the dash and how each gauge gets its signal |
| Description_FAB | Set up and managed all through an app available on the App Store® or Google Play® |
| Description_FAB | Spaces for 6 standard gauges: speedo, tach, fuel, oil, volt, temp, and 2 auxiliary gauges of the customers’ choosing |
| Description_SHO | Link Gauge |
| Description_INV | ZEUS LINK MODULE FOR S2 OBDII |
| Description_DES | Zeus-Link Gauge Interface Module |
| Description_EXT | Holley ECU Sniper II Compatible |
| Description_MKT | Zeus-Link™ is an all-inclusive gauge interface unit that can connect to Holley ECU’s (Dominator, HP, Terminator X, Terminator X Max, Sniper and Sniper 2) and to GM OBDII ports, reading vehicle data from CAN BUS to drive any Classic Instruments gauges accurately. Additional pass-through CAN port connection for other CAN devices. Customers can connect up to 6 standard gauges and 2 auxiliary gauges using all sender inputs or none. All instruments can be driven traditionally if the vehicle ECU does not support an output the driver wants to monitor. Unit features warning and check engine light outputs, dash light connection and on-board diagnostic lights to give status of power, BLE, and data. For maximum compatibility with Holley products, there is an additional resistor available if there are other CAN devices on the same harness and the Holley harness has an additional Holley ECU connector for other devices. The entire unit is setup and managed through an app available on the App Store® or Google Play®. Configure which gauges are in the dash, how each gets its signal, view values being received by Zeus-Link™, and verify correct outputs and wiring all through the app. |
| Description_FAB | All gauge connections to Zeus-Link (power, ground, signal, dash lights) |
| Description_FAB | Pass-through CAN port connection for other CAN devices |
| Description_FAB | On-board diagnostic lights give status of power, BLE, and data on the circuit board for Zeus-Link |
| Description_FAB | Holley harness has additional Holley ECU connector for other devices |
| Description_FAB | Dash light connection |
| Description_FAB | All instruments can be driven traditionally through proper senders if vehicle ECU does not support an output the driver wants to monitor |
| Description_FAB | Harness plugs direct into Zeus-Link and then to Holley ECU or OBD |
| Description_FAB | The app has a virtual gauge screen, aligning with the dash instruments |
| Description_FAB | Additional resistor dongle available if needed to use multiple Holley CAN devices on the same harness |
| Description_FAB | Warning and check engine light outputs on the Zeus-Link and external contacts to light a dash light |
| Description_FAB | System queries vehicle upon installation to determine what list of parameters can be obtained from the vehicle and used as inputs to gauges |
| Description_FAB | The app has easy diagnostics, displays values being received by Zeus-Link and will allow user to cycle gauges to predetermined positions, to verify correct outputs and wiring |
| Description_FAB | Compatible with all Classic Instruments sending units and gauges |
| Description_FAB | The app is used to configure by choosing which gauges a customer has in the dash and how each gauge gets its signal |
| Description_FAB | Set up and managed all through an app available on the App Store® or Google Play® |
| Description_FAB | Spaces for 6 standard gauges: speedo, tach, fuel, oil, volt, temp, and 2 auxiliary gauges of the customers’ choosing |
| Brand | Classic Instruments |
| Category | Body |
| Emission Code | 6 |
| part type | Gauge Sensor Module |
| Product Type | Adapter |
| Sub Category | Control Modules |
| Warning | California Proposition 65 |
| Brand | Classic Instruments |
| Category | Body |
| Emission Code | 6 |
| part type | Gauge Sensor Module |
| Product Type | Adapter |
| Sub Category | Control Modules |
| Warning | California Proposition 65 |
