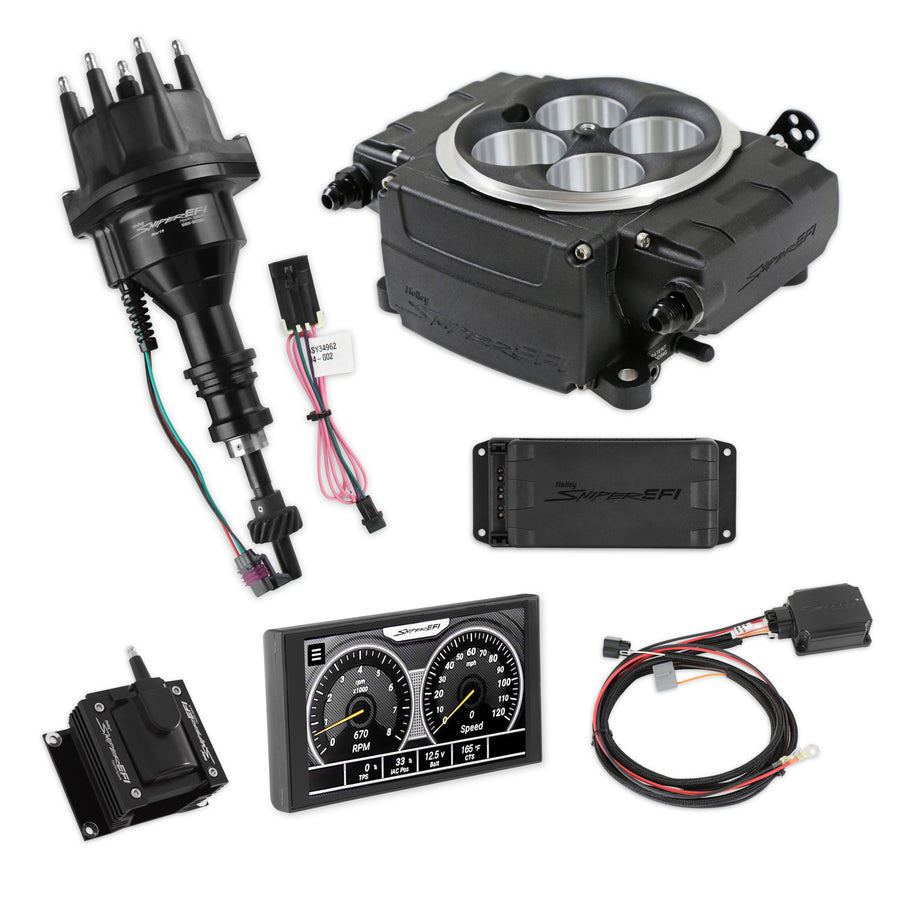

Make a classic drive like a modern fuel-injected vehicle, with better cold starts, smoother drivability, and improved fuel economy. Sniper 2 is designed to be installed at home with limited tools and the support of Holley's installation manuals and videos. The handheld setup wizard answers a few simple questions about the engine and begins self-tuning with no laptop needed. This bundle adds a Ford small block 8.2-inch deck HyperSpark ignition kit for integrated timing control.
Key Features:
- HyperSpark ignition kit includes a Ford small block 8.2-inch deck distributor, coil, and HyperSpark 2 ignition box for integrated timing control
- Power Distribution Module (PDM) isolates core EFI and ignition wiring into a single positive-lock connection point
- Only battery power, ground, and a switched 12V source are required to power the PDM and Sniper 2 system
- 5 in. full-color LCD touchscreen handheld for setup, tuning, and gauge displays
- Next generation ECU with improved RF noise and interference resistance
- Hidden-harness wiring exits from the rear of the throttle body for a clean installation
- Cast-in fuel crossover from the primary to secondary fuel rail
- Genuine Bosch LSU 4.9 wideband oxygen sensor for real-time fuel map learning
- Integrated transmission kick-down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6
- Only 4 wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
- Supports up to 650 hp naturally aspirated or 575 hp on boost with four 100 lb/hr injectors
- Sniper 2 throttle bodies are individually serialized for improved warranty/service tracking
Specifications:
- Product Type: Sniper EFI
- Flange Style: 4150
- Finish: Black
- CFM: 800
- Max Horsepower Rating: 650 Naturally Aspirated / 575 Boosted
- Injector Size: 100 lb/hr @ 58.5 PSI
- Fuel Pressure: 58.5 PSI
- Fuel System: Not Included
- Distributor Included: Ford Small Block
- HyperSpark Ignition Kit: Ford Small Block 8.2 Deck
- MAP Sensor: 2 Bar
- User Interface: 5 in. Handheld
- Power Distribution Module: Yes
- Transmission Compatibility: All
- Height: 3.28 in.
- Warranty: Two Year Standard, Extended Via Product Registration
- Part Number: 550-511-5PX-SBF
Fuel system not included — an external fuel pump and pressure regulator set to 58.5 PSI are required. Nitrous control is not supported in Sniper 2 EFI software.
FAQ
Does this kit include a fuel system?
No. The 550-511-5PX-SBF does not include a fuel system — an external fuel pump and regulator set to 58.5 PSI are required.
What ignition components are included?
A Ford small block 8.2-inch deck HyperSpark distributor, HyperSpark coil, and HyperSpark 2 ignition box for integrated timing control.
How much horsepower can this kit support?
Up to 650 hp naturally aspirated or 575 hp under boost, using four 100 lb/hr injectors.
What does the PDM simplify?
The Power Distribution Module isolates the core EFI and ignition wiring into one connection point, requiring only battery power, ground, and switched 12V.
Is nitrous control supported?
No, nitrous control is not supported in Sniper 2 EFI software.
