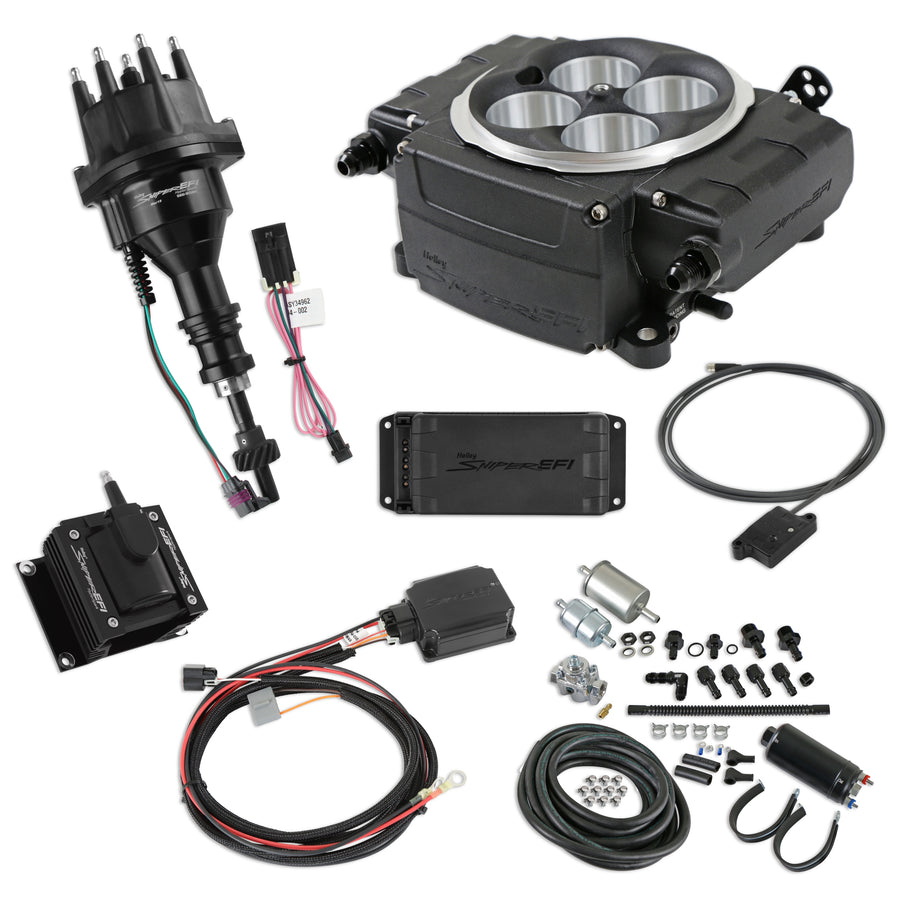

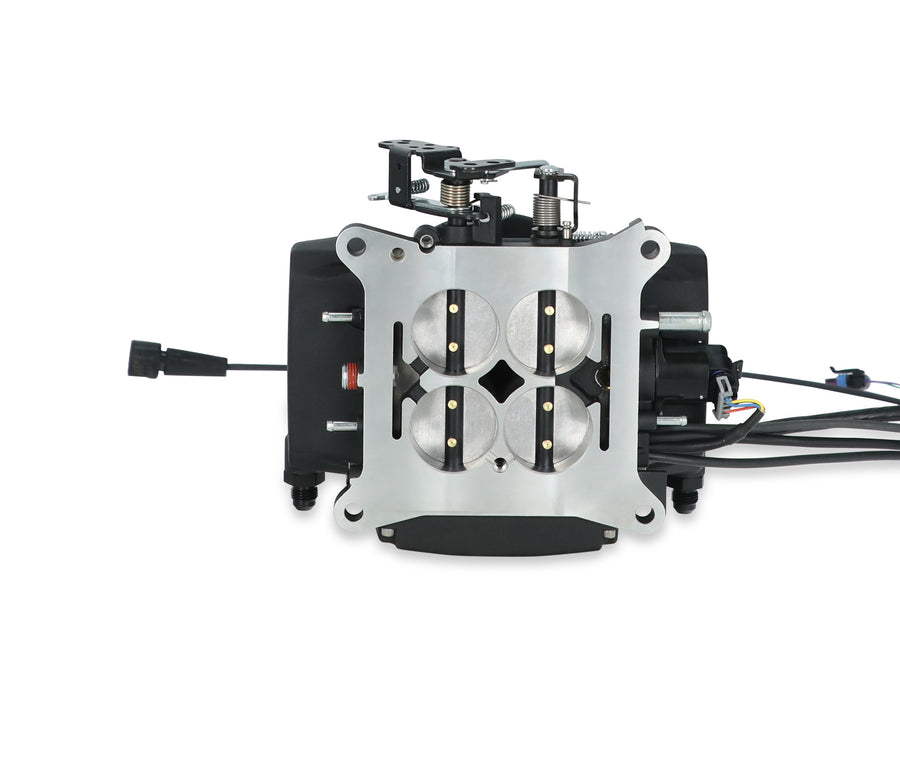

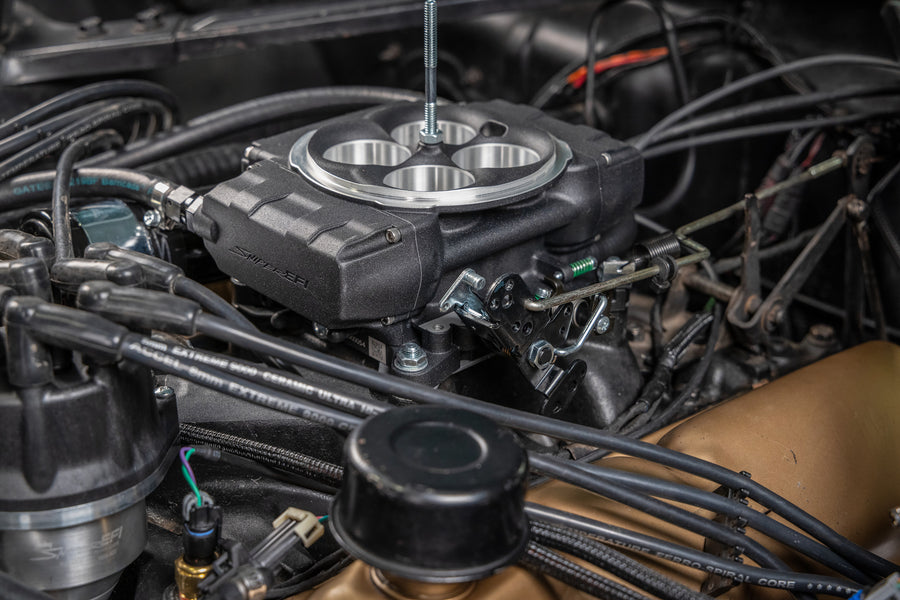

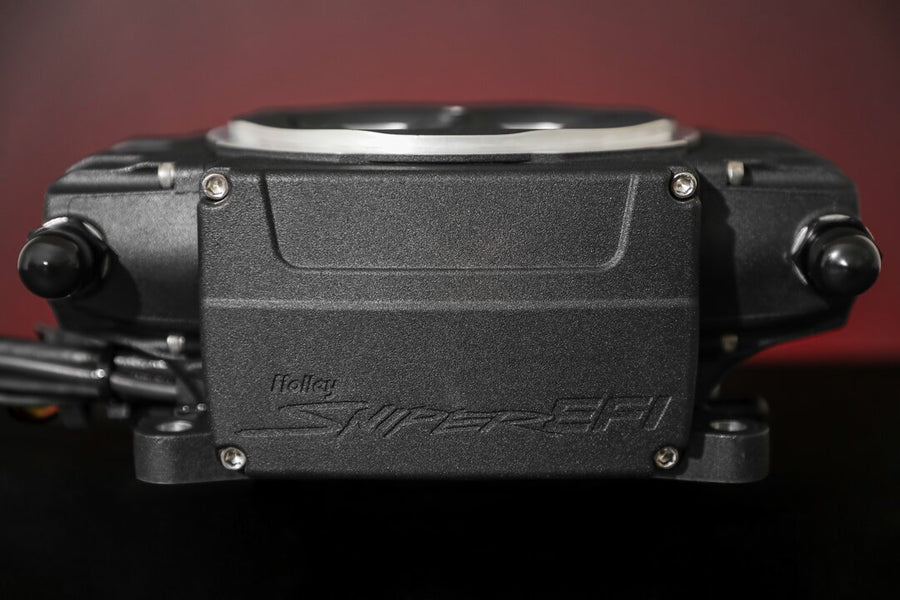

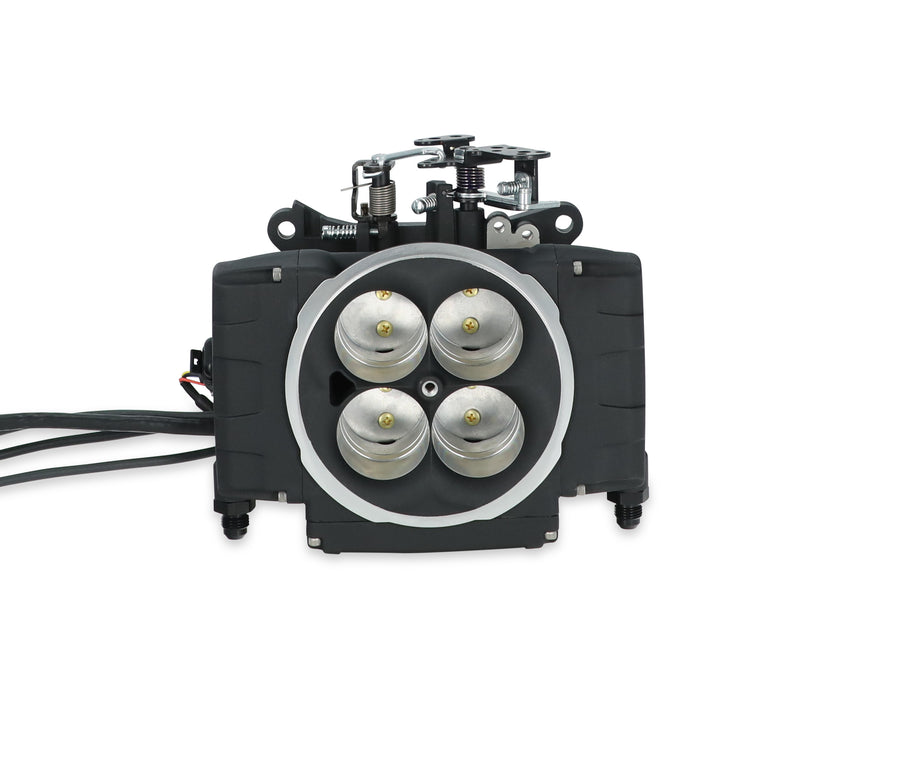

This Sniper 2 EFI Master Kit Bundle pairs Holley's top-selling Sniper 2 EFI conversion with a matched Ford HyperSpark distributor, coil, and ignition box, a Power Distribution Module (PDM), Sniper 2's Bluetooth tuning module, and a complete inline fuel system. Designed for at-home installation, the self-tuning calibration wizard means no laptop or tuning experience is required.
Key Features:
- Sniper 2 EFI Bundle includes a Power Distribution Module (PDM), HyperSpark 2 ignition box, coil, and a Ford Small Block distributor
- Inline fuel system master kit includes a 240 LPH fuel pump, pressure regulator, and filters for a complete fuel delivery solution

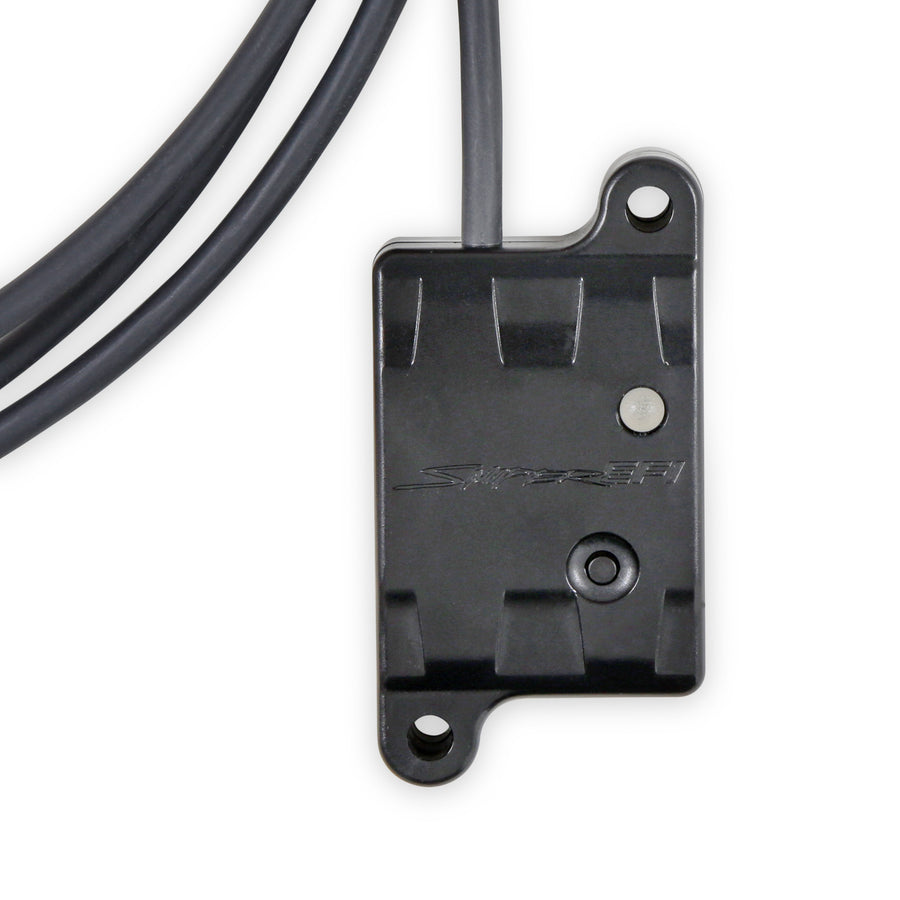

- Sniper 2 Bluetooth module turns an iOS or Android smartphone into a tuning and monitoring interface with a base map to get started, no laptop required
- Patented clear installation cap eliminates confusion while installing the distributor
- Integrated transmission kick down provisions for Ford C4/C6 applications (Transmission Control Kit and vehicle harness sold separately)
- Only 4 wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
- Next generation ECU features improved RF noise and interference resistance
- Ignition box provides a clean installation, precise timing control, and consistent spark energy from idle to redline
- Cast-in fuel crossover from the primary to secondary fuel rail

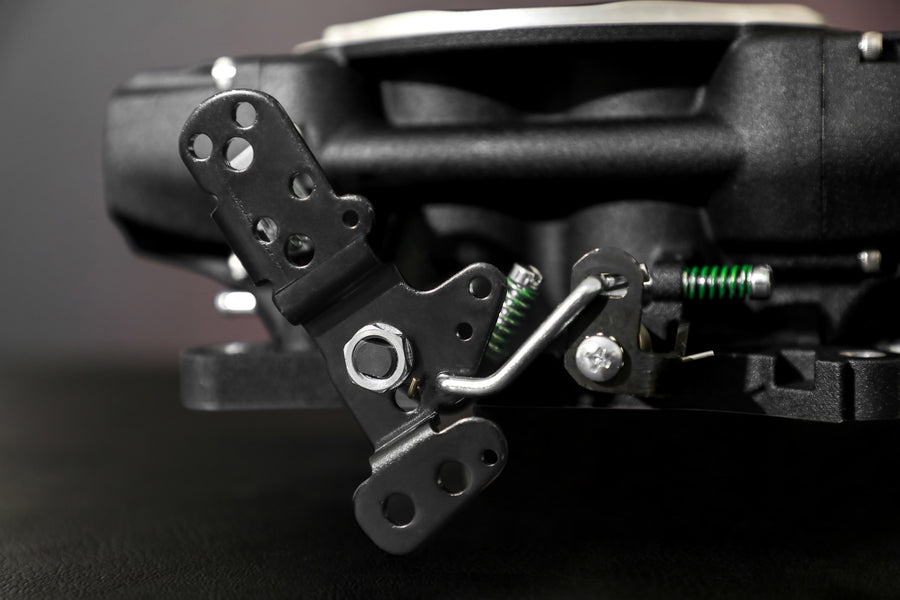

- Geometrically redesigned throttle shaft and plate for a smoother throttle feel
- PDM wiring diagram on the lid keeps installation wiring stress free
- Billet aluminum PDM plugs directly into the main harness with a Hall Effect crank trigger for a noise-free RPM signal
- Integrated ignition coil bracket delivers up to 150 mJ of spark energy per second from idle to redline
- Supports up to 650 HP naturally aspirated or 575 HP boosted with (4) 100 lb./hr. injectors
Specifications:

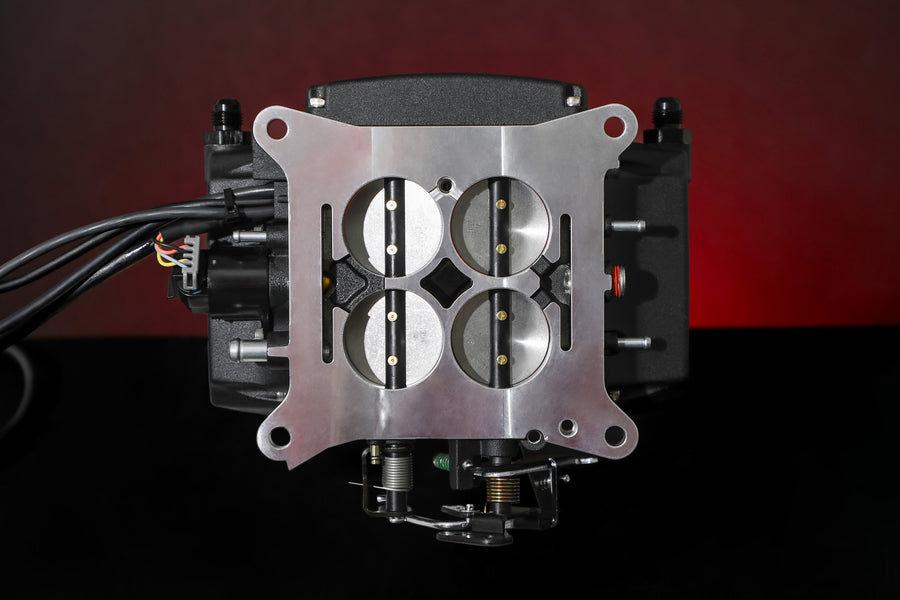

- Flange Style: 4150
- CFM: 800
- Fuel Pressure: 58.5 PSI
- Fuel Pump Flow Rating: 240 LPH
- Fuel System: Inline Master Kit (Included)
- Injector Size: (4) 100 lb/hr @ 58.5 PSI
- MAP Sensor: 2 Bar
- Max Horsepower Rating: 650 HP naturally aspirated, 575 HP boosted
- User Interface: Bluetooth Module
- Power Distribution Module: Included
- Distributor Included: Ford Small Block
- Finish: Black
- Part Number: 550-511-BPK-SBF

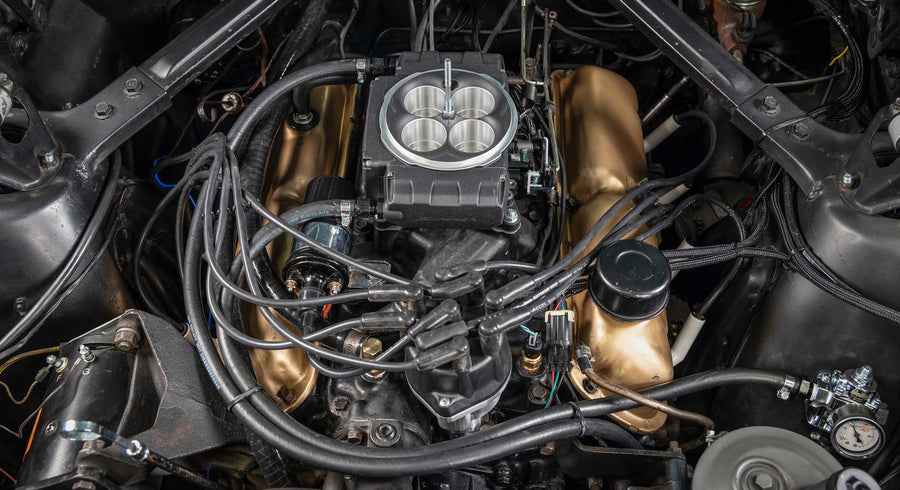

Fits Ford 260/289/302/5.0L (8.2" deck) V8 engines only. Bluetooth Module tuning service is only available in the USA and Canada.
FAQ
What engines does the 550-511-BPK-SBF bundle fit?
This bundle fits Ford 260, 289, 302, and 5.0L (8.2 inch deck) small block V8 engines and includes a matched Ford distributor.
Does this kit include a fuel system?
Yes, this Master Kit includes a complete inline fuel system with a 240 LPH fuel pump, pressure regulator, and filters.
How is this bundle tuned without a handheld screen?
Tuning and monitoring is done through the Sniper 2 Bluetooth module and a smartphone app, no laptop or handheld display required.
How much horsepower can this Sniper 2 EFI bundle support?
It supports up to 650 HP naturally aspirated or 575 HP boosted, using the included (4) 100 lb/hr injectors.
Is the Bluetooth tuning service available outside the US?
No, the Bluetooth Module tuning service is only available in the USA and Canada.
Is a transmission kickdown supported?
Yes, integrated kick down provisions are included for Ford C4/C6 applications (Transmission Control Kit and vehicle harness sold separately).
