Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 7.5L (460 CID) headers, even if it is not perfectly aligned with the header collectors.
The 89460 series of headers does not include a Y-pipe. To order this header with a Y-pipe, please see Hedman's 89510 Series of headers (89510 uncoated, 89513 black ceramic, 89516 silver ceramic).
These uncoated, MID-LENGTH TUBE, headers fit 1988-92 2WD and 1988-97 4WD Ford F150, F250 and F350 trucks (light-duty only) with a 7.5L (460 CID) E.G.R-equipped EFI powerplant. The long, smooth-flowing 1-3/4 in. tube design provides great exhaust flow to let your Ford F-Series truck's 7.5L engine breathe easy, and produce amazing amounts of torque. They fit column-shift, automatic transmission vehicles only, and are not designed for use on Super-Duty F-series trucks.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

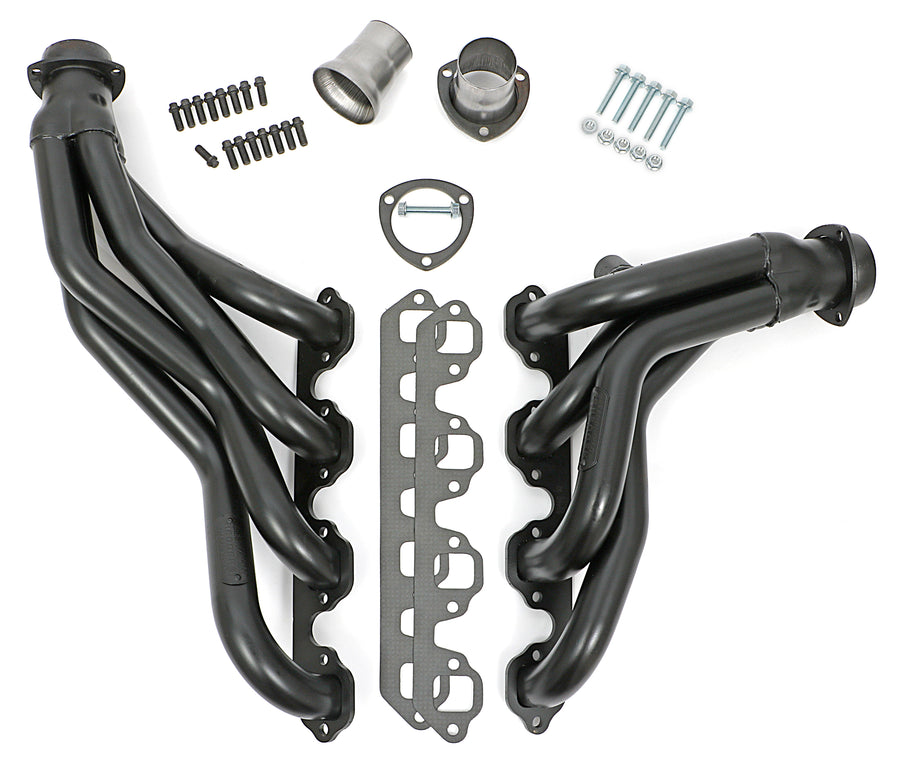

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Hedman Hedders Uncoated Mid-Length Headers for 1988-97 2WD/4WD Ford F150-F350 Trucks with 7.5L 89460
Specifications:
| Description_DEF | [B@6eccb499 |
| Description_DES | [B@7554647 |
| Description_EXT | [B@6211b8ff |
| Description_FAB | [B@64cf2228 |
| Description_FAB | [B@6f2c3a54 |
| Description_FAB | [B@42e63e88 |
| Description_FAB | [B@2ddfa06b |
| Description_FAB | [B@301c099a |
| Description_FAB | [B@3e6c7b57 |
| Description_INV | [B@4d0d106c |
| Description_MKT | [B@1d813d5e |
| Description_SHO | [B@4d81b7ad |
| Tube Diameter | 1-3/4 in. |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Collector Bolts Included | Yes |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Reducers Included | Yes |
| Tube Size | 1-3/4 in. |
| Y-Pipe Included | No |
| Quantity | Sold as a pair. |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.75 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head Port Shape | Square |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27680 |
| Replacement Head Flange Gasket | 27680 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Variations | 89466, 89468 |
| Tube Material Thickness | 16g |
| Tube Style | Mid-Length |
| Exhaust System Dia | 2-1/2 in. |
| Air Conditioning | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | No |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | No |
| Power Steering | Yes |
| Footnotes | 146. Will not fit F-Series Super Duty chassis cabs, utility, stake bed, etc. |
| Collector Attachment | 3 in. |
| Collector Diameter | 3 in. |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Reducer Outlet Size | 2-1/2 in. |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Tube Length | Mid-Length Tubes |
| Drivetrain | 2WD |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Flange Style | Standard |
| Flange Thickness | 0.3125 in. |
| Header Port Shape | Square |
| Header Style | Mid-Length Tube |
| Notes | 88-97 Ford 1/2-3/4 Ton, F150-F250-F350; 2-4WD 460 (7.5L) |
| Port Shape | Square |
| Material | Mild Steel |
| Tube Design | Standard |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; SHORTY DESIGN |
| Mounting Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | Yes |
| Weld-Up | No |
| Tuned | No |
