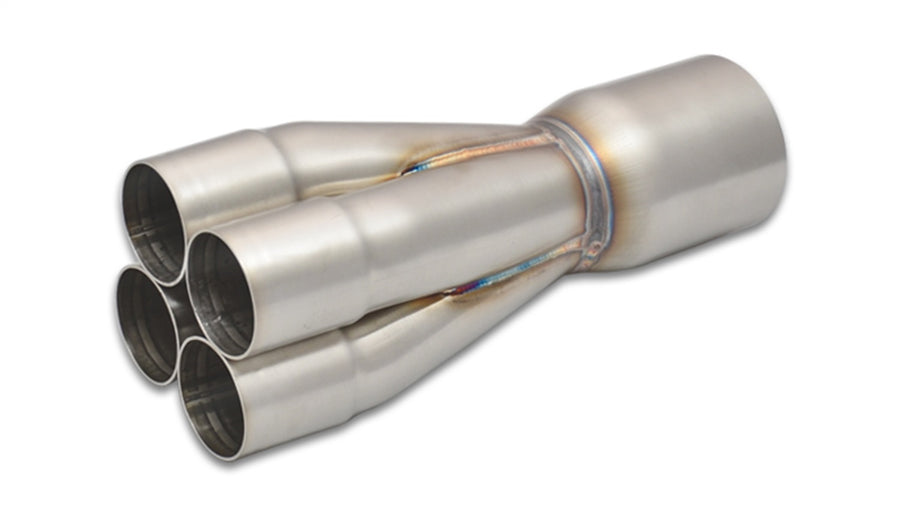

The Vibrant Performance 4-1 merge collector blends four primary tubes into a single outlet. It accepts 1.75 in inlet slip-over tubing, steps through a 2.50 in merge diameter, and transitions to a 3.00 in outlet. Construction is 16 gauge 304 stainless steel with back purged TIG welds at every seam, and each unit ships ready to weld straight out of the box with little or no prep required. Sold individually.
- Type: 4-into-1 merge collector
- Inlet slip-over ID: 1.75 in
- Merge OD: 2.50 in
- Outlet OD: 3.00 in
- Overall length: 10.625 in
- Material: 16 gauge 304 stainless steel
- Sold individually
- Part number: 10302
FAQ
What material is the Vibrant 4-1 merge collector made from?
It is built from 16 gauge 304 stainless steel with back purged TIG welds at every seam for strength and corrosion resistance.
What are the inlet, merge, and outlet sizes?
The collector accepts 1.75 in inlet slip-over tubing, uses a 2.50 in merge diameter, and transitions to a 3.00 in outlet.
Does the merge collector need prep before welding?
Each collector ships ready to weld straight out of the box with little or no prep required and is sold individually.
