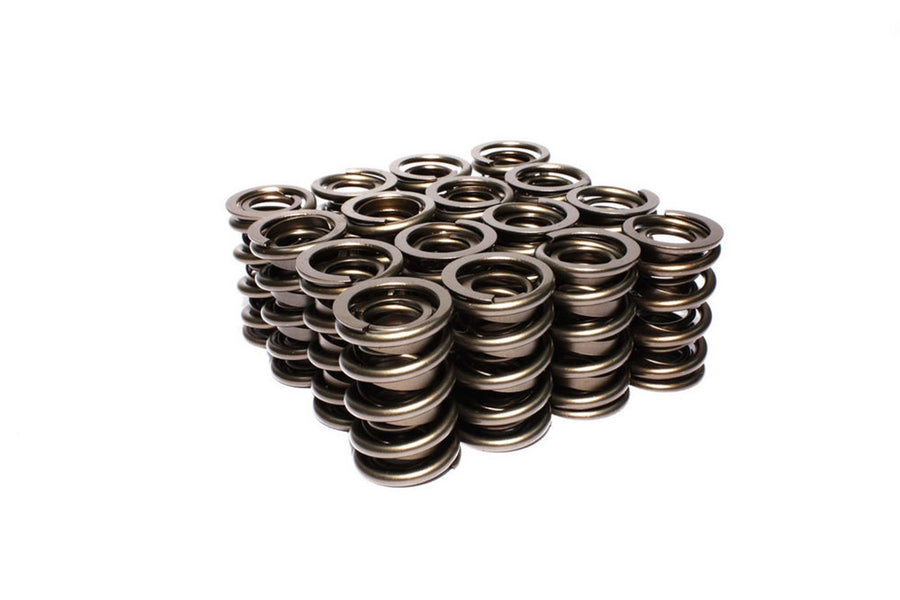

COMP Cams Engine Valve Spring Kit 26094-16
Specifications:
| Maximum Coil Bind Height (in) | 1.130 |
| Compatible .630" Guide Diameter Spring Seats | 4773-16 |
| Compatible .570" Guide Diameter Spring Seats | 4772-16 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Spring Rate | 454 |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| C.A.R.B. E.O. Number | N/A |
| Valve Spring Style | Dual |
| Load at Open Height (lbs) | 526 |
| Recommended Max Lift (in) | .760 |
| ID of Inner Spring (in) | .812 |
| Spring Rate (lbs/in) | 500 |
| Valve Spring Finish | Raw |
| Quantity | 16 |
| Damper | Yes |
| Load at Installed Height | 150 |
| Open Height | 1.200 |
| Outer Spring Outside Diameter | 1.555 |
| Outer Spring Inside Diameter | 1.136 |
| Number of Springs Per Valve | 2 |
| Inner Spring Inside Diameter | 0.812 |
| Compatible Spring Cup (O.D. Locator) | 4700-16 |
| Compatible Retainer | 780 Steel Retainers for 7° Locks and 3/8 Valves |
| Compatible Shims | 4757 |
| Description_SHO | Engine Valve Spring |
| Description_INV | Comp Valve Spring 26094-16 |
| Description_KSW | Valve Springs |
| Description_KSW | Valve spring kit |
| Description_KSW | Max lift |
| Description_KSW | Comp valve spring kit |
| Description_KSW | valve lift |
| Description_DES | DUAL SPRING W/ DAMPER |
| Description_DES | 1.555 OD |
| Description_DES | 1.950 IH |
| Description_DES | .760 LIFT |
| Description_DES | 500 LBS/IN |
| Description_EXT | Designed for race solid flat tappet and aggressive roller cams |
| Description_EXT | 26094 fits applications near a 1.950" installed height and a spring pocket of 1.555". It has a 500 lbs/in rate and a 526 lbs open load for controlling heavier valve trains. |
| Description_MKT | COMP Cams' new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire |
| Description_MKT | they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is geared towards aggressive solid roller cams with up to .760" lift and race-oriented solid flat tappet setups |
| Description_MKT | with an installed height of 1.950”. They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds |
| Description_MKT | these valve springs are designed for many aggressive street and race applications with exceptional performance and durability.Whether you're seeking improved dynamics |
| Description_MKT | enhanced valve control |
| Description_MKT | or unmatched reliability |
| Description_MKT | we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs. |
| Description_DEF | Engine Valve Spring Kit |
