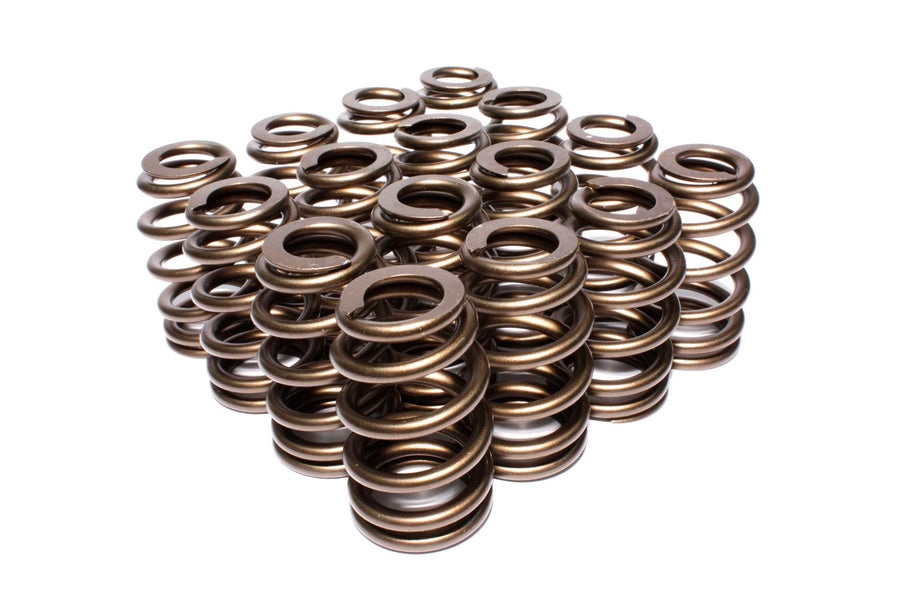

COMP Cams Engine Valve Spring Kit 26056-16
Specifications:
| Compatible .570" Guide Diameter Spring Seats | 4696-16 |
| Coil Bind Height | 1.1 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Valve Spring Series | Race Sportsman |
| Title | Race Sportsman 1.454" OD Beehive Springs; 1.800" Installed Height; 16 Springs |
| Spring Rate | 400 |
| Seat Height | 1.8 |
| Compatible Shims | 4757 |
| Outer Top Spring Outside Diameter | 1.185 |
| Outer Top Spring Inside Diameter | 0.731 |
| Outer Bottom Spring Outside Diameter | 1.454 |
| Outer Bottom Spring Inside Diameter | 1 |
| Number of Springs | 1 |
| Damper | No |
| Compatible Spring Cup (O.D. Locator) | 4704-16 |
| Compatible .630" Guide Diameter Spring Seats | 4697-16 |
| Amazon ASIN | B002EE0BLS |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| C.A.R.B. E.O. Number | N/A |
| Compatible Retainer | 785-16 |
| Seat Pressure | 160 |
| Description_SHO | Engine Valve Spring |
| Description_INV | Race S-man 1.454" Beehive 1.8" Ht |
| Description_KSW | Valve Springs |
| Description_KSW | Dual Valve Springs |
| Description_KSW | Single Valve Springs |
| Description_KSW | Beehive Springs |
| Description_KSW | Conical Springs |
| Description_KSW | Valve Lift |
| Description_KSW | Max Lift |
| Description_KSW | Spring Kit |
| Description_DES | Race Sportsman 1.454" OD Beehive Springs |
| Description_DES | 1.800" Installed Height |
| Description_DES | 16 Springs |
| Description_DEF | Engine Valve Spring Kit |
