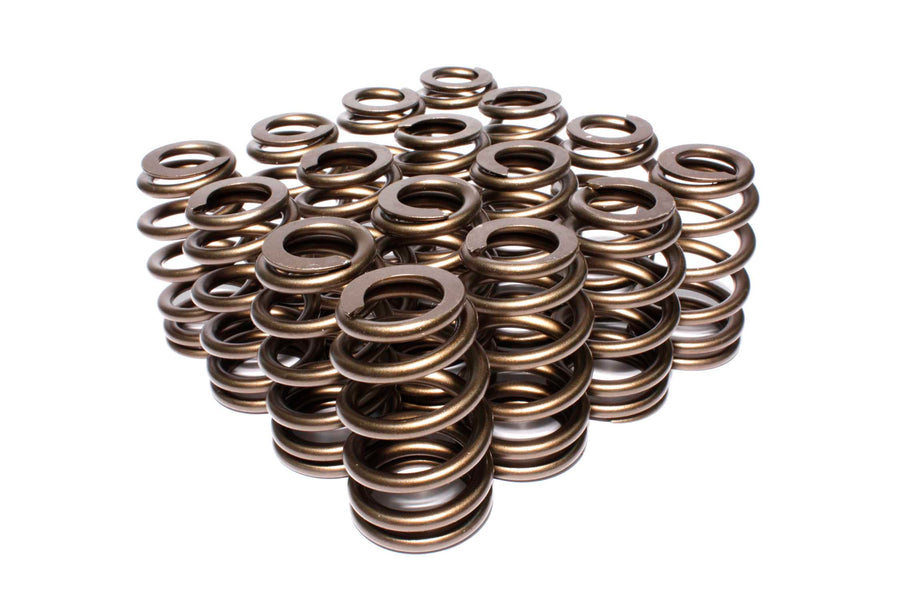

COMP Cams Engine Valve Spring Kit 26055-16
Specifications:
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Outer Bottom Spring Outside Diameter | 1.585 |
| Title | Race Sportsman 1.585" OD Beehive Springs; 1.925" Installed Height; 16 Springs |
| Spring Rate | 400 |
| Seat Pressure | 150 |
| Seat Height | 1.925 |
| Outer Top Spring Outside Diameter | 1.204 |
| Outer Top Spring Inside Diameter | 0.721 |
| Outer Bottom Spring Inside Diameter | 1.102 |
| Coil Bind Height | 1.225 |
| Number of Springs | 1 |
| Damper | No |
| Compatible Spring Cup (O.D. Locator) | 4702-16 |
| Compatible Shims | 4757 |
| Compatible Retainer | 785-16 |
| Compatible .630" Guide Diameter Spring Seats | 4697-16 |
| Compatible .570" Guide Diameter Spring Seats | 4640-16 |
| Valve Spring Series | Race Sportsman |
| Amazon ASIN | B0014F6FXG |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| C.A.R.B. E.O. Number | N/A |
| Description_SHO | Engine Valve Spring |
| Description_INV | Race S-man 1.585" Beehive 1.925" Inst Ht |
| Description_KSW | Valve Springs |
| Description_KSW | Dual Valve Springs |
| Description_KSW | Single Valve Springs |
| Description_KSW | Beehive Springs |
| Description_KSW | Conical Springs |
| Description_KSW | Valve Lift |
| Description_KSW | Max Lift |
| Description_KSW | Spring Kit |
| Description_DES | Race Sportsman 1.585" OD Beehive Springs |
| Description_DES | 1.925" Installed Height |
| Description_DES | 16 Springs |
| Description_DEF | Engine Valve Spring Kit |
