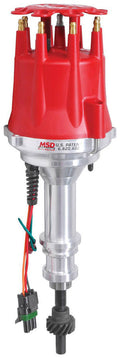

This E-Curve distributor drops right into a Ford 289/302 and uses a digital control module to manage the timing curve in place of centrifugal advance springs and weights. Two rotary dials let the installer select from nearly 100 different advance curves, including vacuum advance, and set an rpm limit to protect the engine from over-rev damage caused by a missed shift or driveline failure.
Specifications:
- Category: Ignition
- Engine: Ford Small Block (289/302)
- Color: Red
- Distributor Type: Ready to Run
- Gear Material: Cast Iron, Melonized QPQ Coated
- Sub Category: Distributor and Magneto
- Built-in high-output ignition module — no external ignition box required
- Simple three-wire connection
- Part Number: 8503
Also fitted with a high-output ignition module, this distributor needs no external ignition box, making it well suited for restored muscle cars and street rods that need to keep a stock, clean appearance under the hood.
FAQ
How many timing curves can the MSD 8503 be set to?
The two rotary dials allow selection from nearly 100 different advance curves, including vacuum advance.
Does the MSD 8503 need an external ignition box?
No, it has a built-in high-output ignition module and only needs a simple three-wire connection.
Can the MSD 8503 protect against over-rev damage?
Yes, it lets the installer set an rpm limit to protect the engine from over-rev damage caused by a missed shift or driveline failure.
What engines does the MSD 8503 fit?
It's designed for Ford 289/302 small block engines.
