Baer Brake Systems Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs 4301388R
Regular Price
$3,149.95

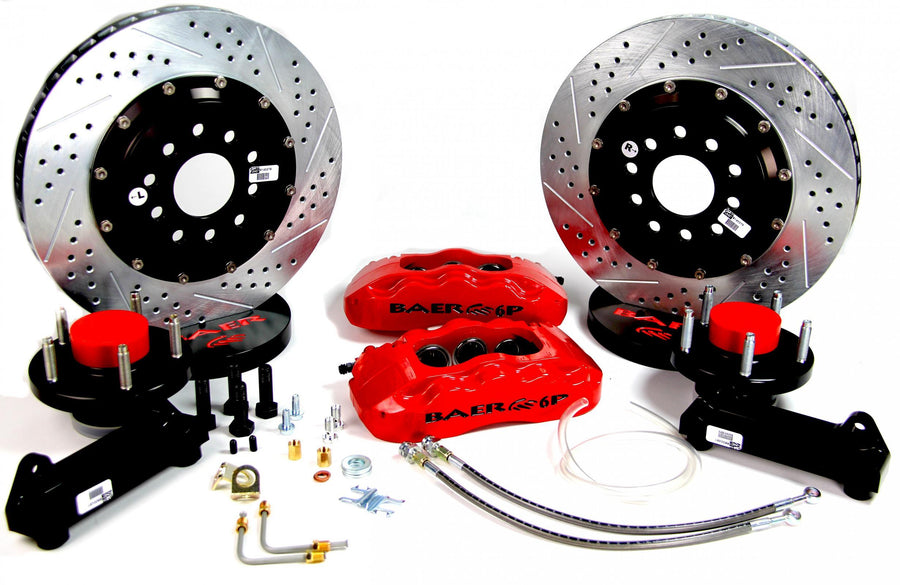

This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels.
Baer Brake Systems Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs 4301388R
Specifications:
| Applications | GM C10 Trucks 60-87 |
| Description_INV | DISC BRAKES GM FRONT |
| Axle | Front |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| Brand | Baer Brakes |
| Description_DES | Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs |
| Caliper | 6P |
| Description_EXT | Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/CPP Nodular Iron 2.5" Drop Spindle (5 Lug, 5x5"BC) |
| 8247 | Red |
| Description_MKT | This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels. |
| Category | Brake |
| Description_FAB | 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ |
| 9363 | 6 |
| Description_FAB | CNC Machined from US Sourced Forged or Billet Aluminum |
| 9358 | Fixed |
| Description_FAB | Powder Coated Finish |
| 151 | D0731 |
| Description_FAB | Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| 9361 | Vented |
| Description_FAB | Staggered Pistons to Minimize Uneven Pad Wear |
| 9365 | 14.000 |
| Description_FAB | Dual Seals, Dust/Weather & Pressure |
| Emission Code | 6 |
| Description_FAB | 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Export Description | Brake Components |
| Description_INV | DISC BRAKES GM FRONT |
| Fitment Notes | w/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC) |
| Description_ASC | ** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.** |
| 3390 | Performance |
| Description_DES | Baer Brakes 14" Pro+ Front Brake Kit, Red, SDZ, Std. Studs |
| 761 | Stainless Steel |
| Description_EXT | Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/CPP Nodular Iron 2.5" Drop Spindle (5 Lug, 5x5"BC) |
| Lug Count | 5 Lug |
| Description_MKT | This system features the 6-piston, 6P caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14" Pro+ is designed to fit most 18” or larger wheels. |
| Min Wheel Dia (verify using template) | 18 |
| Description_FAB | 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ |
| part type | Disc Brake Upgrade Kit |
| Description_FAB | CNC Machined from US Sourced Forged or Billet Aluminum |
| Product Line | 14 Inch Pro+ |
| Description_FAB | Powder Coated Finish |
| Product Type | 14 Inch Pro+ Front Brake Kit |
| Description_FAB | Stainless Steel Pistons, Abutments and Noise Suppression Clips |
| Prop 65 (C, R or CR) | CR |
| Description_FAB | Staggered Pistons to Minimize Uneven Pad Wear |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Description_FAB | Dual Seals, Dust/Weather & Pressure |
| Prop 65 Yes/No | Yes |
| Description_FAB | 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat |
| Rotor Thickness | 1.150 |
| Rotor Type | 2-Piece |
| Spindle Type | CPP Nodular Iron 2.5" Drop Spindles |
| Spindles Included | No |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10) |
| Template | Q117P |
| Title | Pro+ Brake System Front |
| Warning | California Proposition 65 |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
| Applications | GM C10 Trucks 60-87 |
| Axle | Front |
| Brand | Baer Brakes |
| Caliper | 6P |
| 8247 | Red |
| Category | Brake |
| 9363 | 6 |
| 9358 | Fixed |
| 151 | D0731 |
| 9361 | Vented |
| 9365 | 14.000 |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fitment Notes | w/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC) |
| 3390 | Performance |
| 761 | Stainless Steel |
| Lug Count | 5 Lug |
| Min Wheel Dia (verify using template) | 18 |
| part type | Disc Brake Upgrade Kit |
| Product Line | 14 Inch Pro+ |
| Product Type | 14 Inch Pro+ Front Brake Kit |
| Prop 65 (C, R or CR) | CR |
| Prop 65 - Long Label | WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 Yes/No | Yes |
| Rotor Thickness | 1.150 |
| Rotor Type | 2-Piece |
| Spindle Type | CPP Nodular Iron 2.5" Drop Spindles |
| Spindles Included | No |
| Sub Category | Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated |
| System Notes | Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10) |
| Template | Q117P |
| Title | Pro+ Brake System Front |
| Warning | California Proposition 65 |
| Wheel Lug/Bolt Pattern | 5x5.00 |
| Wheel Stud Size | 1/2-20 x 2.25 inch |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1975 | Chevrolet | C10 | ||
| 1976 | Chevrolet | C10 | ||
| 1977 | Chevrolet | C10 | ||
| 1978 | Chevrolet | C10 | ||
| 1979 | Chevrolet | C10 | ||
| 1980 | Chevrolet | C10 | ||
| 1981 | Chevrolet | C10 | ||
| 1982 | Chevrolet | C10 | ||
| 1983 | Chevrolet | C10 | ||
| 1984 | Chevrolet | C10 | ||
| 1985 | Chevrolet | C10 | ||
| 1986 | Chevrolet | C10 | ||
| 1960 | Chevrolet | C10 Pickup | Base | |
| 1961 | Chevrolet | C10 Pickup | Base | |
| 1962 | Chevrolet | C10 Pickup | Base | |
| 1963 | Chevrolet | C10 Pickup | Base | |
| 1964 | Chevrolet | C10 Pickup | Base | |
| 1965 | Chevrolet | C10 Pickup | Base | |
| 1966 | Chevrolet | C10 Pickup | Base | |
| 1967 | Chevrolet | C10 Pickup | Base | |
| 1968 | Chevrolet | C10 Pickup | Base | |
| 1969 | Chevrolet | C10 Pickup | Base | |
| 1970 | Chevrolet | C10 Pickup | Base | |
| 1971 | Chevrolet | C10 Pickup | Base | |
| 1972 | Chevrolet | C10 Pickup | Base | |
| 1973 | Chevrolet | C10 Pickup | Base | |
| 1974 | Chevrolet | C10 Pickup | Base | |
| 1967 | Chevrolet | C10 Suburban | ||
| 1968 | Chevrolet | C10 Suburban | ||
| 1969 | Chevrolet | C10 Suburban | ||
| 1970 | Chevrolet | C10 Suburban | ||
| 1971 | Chevrolet | C10 Suburban | ||
| 1972 | Chevrolet | C10 Suburban | ||
| 1973 | Chevrolet | C10 Suburban | ||
| 1974 | Chevrolet | C10 Suburban | ||
| 1975 | Chevrolet | C10 Suburban | ||
| 1976 | Chevrolet | C10 Suburban | ||
| 1977 | Chevrolet | C10 Suburban | ||
| 1978 | Chevrolet | C10 Suburban | ||
| 1979 | Chevrolet | C10 Suburban | ||
| 1980 | Chevrolet | C10 Suburban | ||
| 1981 | Chevrolet | C10 Suburban | ||
| 1982 | Chevrolet | C10 Suburban | ||
| 1983 | Chevrolet | C10 Suburban | ||
| 1984 | Chevrolet | C10 Suburban | ||
| 1985 | Chevrolet | C10 Suburban | ||
| 1986 | Chevrolet | C10 Suburban | ||
| 1966 | GMC | 1000 | ||
| 1960 | GMC | 1000 Series | ||
| 1961 | GMC | 1000 Series | ||
| 1962 | GMC | 1000 Series | ||
| 1963 | GMC | 1000 Series | ||
| 1964 | GMC | 1000 Series | ||
| 1965 | GMC | 1000 Series | ||
| 1975 | GMC | C15 | ||
| 1976 | GMC | C15 | ||
| 1977 | GMC | C15 | ||
| 1978 | GMC | C15 | ||
| 1967 | GMC | C15/C1500 Pickup | ||
| 1968 | GMC | C15/C1500 Pickup | ||
| 1969 | GMC | C15/C1500 Pickup | ||
| 1970 | GMC | C15/C1500 Pickup | ||
| 1971 | GMC | C15/C1500 Pickup | ||
| 1972 | GMC | C15/C1500 Pickup | ||
| 1973 | GMC | C15/C1500 Pickup | ||
| 1974 | GMC | C15/C1500 Pickup | ||
| 1979 | GMC | C1500 | ||
| 1980 | GMC | C1500 | ||
| 1981 | GMC | C1500 | ||
| 1982 | GMC | C1500 | ||
| 1983 | GMC | C1500 | ||
| 1984 | GMC | C1500 | ||
| 1985 | GMC | C1500 | ||
| 1986 | GMC | C1500 |
