    CSF All-Aluminum Radiator — 2023-2026 Toyota GR Corolla & 2020-2026 GR Yaris | 1.6L Turbo, 2-Row 42mm | 7233

    Vendor: CSF
    Part Number: CSF7233
    Save $40
    $789.00 $829.00

    Currently out of stock.

    Not sure it fits your vehicle?
    Email sales@berryperformancesales.com with your year, make, model and engine, and we'll help you check fitment before you order.
    Fast Fulfillment: In-stock orders typically ship within 1 to 2 business days.
    Free Shipping on Orders Over $99 | Excludes freight shipments
    International Shipping Available: email sales@berryperformancesales.com for a quote.
    Payment & Security

    Secure, encrypted checkout. Card details go straight to the payment processor and are never stored by us.

    • Amazon
    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Venmo
    • Visa
    Share to:
    View Full Details
    Product DetailsFAQReviewsRelated Products

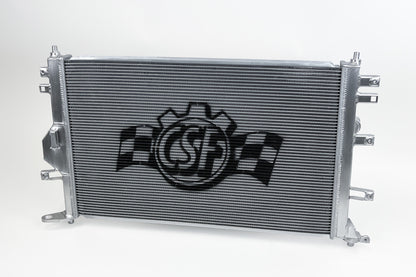

    The CSF 7233 is an all-aluminum high-performance radiator for the 2023-2026 Toyota GR Corolla and 2020-2026 GR Yaris with the turbocharged 1.6L three-cylinder engine. It uses a 2-row 42mm core against the OEM single-row 27mm, with CSF's B-Tube Technology and 5mm track-spec multi-louvered fins for maximum surface area. It is 100 percent TIG-welded aluminum with aluminum end tanks, CNC-machined mounting brackets, a pre-plugged 1/8 inch NPT temperature sensor port, pre-installed foam sealing strips, and a hand-brushed satin finish. It is a drop-in fit with no modifications, and the end tanks are shaped to clear the CSF and Jackson Racing intercoolers.

    • Type: all-aluminum performance radiator
    • Core: 2-row 42mm (OEM 1-row 27mm), B-Tube Technology
    • Fins: 5mm track-spec multi-louvered
    • Engine: 1.6L turbo 3-cylinder
    • Fittings: CNC-machined brackets, OEM hoses
    • Finish: hand-brushed satin
    • Part number: 7233

    Vehicle Applications

    Direct fit on the following (1.6L turbo):

    • 2023 Toyota GR Corolla
    • 2024 Toyota GR Corolla
    • 2025 Toyota GR Corolla
    • 2026 Toyota GR Corolla
    • 2020 Toyota GR Yaris
    • 2021 Toyota GR Yaris
    • 2022 Toyota GR Yaris
    • 2023 Toyota GR Yaris
    • 2024 Toyota GR Yaris
    • 2025 Toyota GR Yaris
    • 2026 Toyota GR Yaris

    FAQ

    What vehicles does the CSF 7233 fit?

    The 2023-2026 Toyota GR Corolla and 2020-2026 GR Yaris with the 1.6L turbo.

    How does the core compare to OEM?

    It is a 2-row 42mm core versus the OEM single-row 27mm, with 5mm track-spec fins.

    Is it a drop-in fit?

    Yes. It installs in the factory location with no modifications.

    Does it clear the CSF intercooler?

    Yes. The end tanks are shaped to clear the CSF and Jackson Racing intercoolers.
