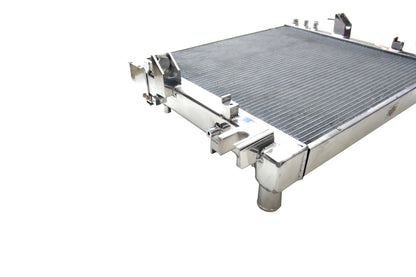

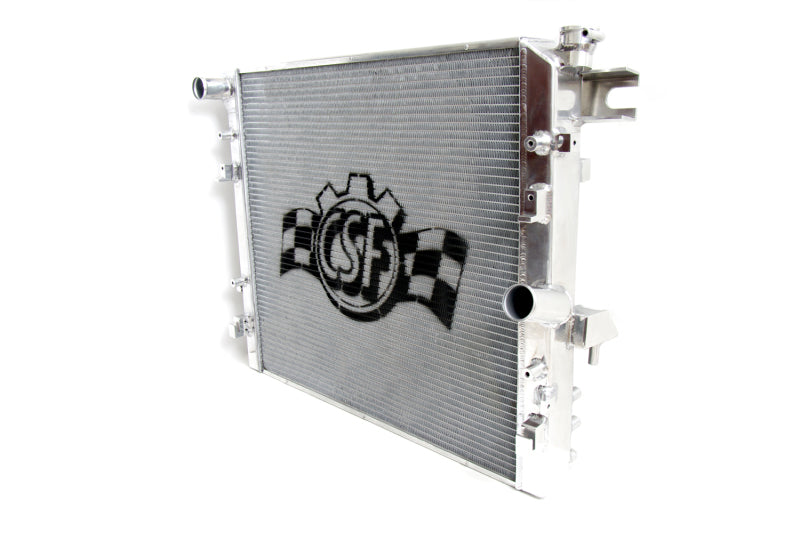

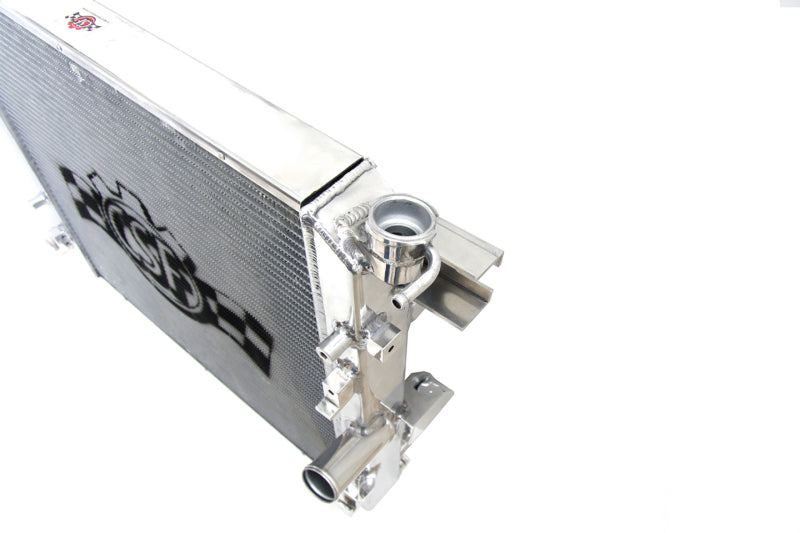

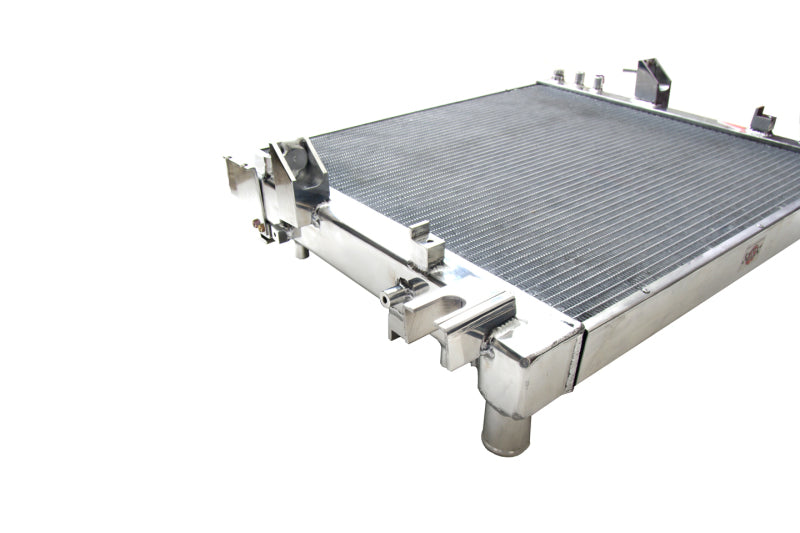

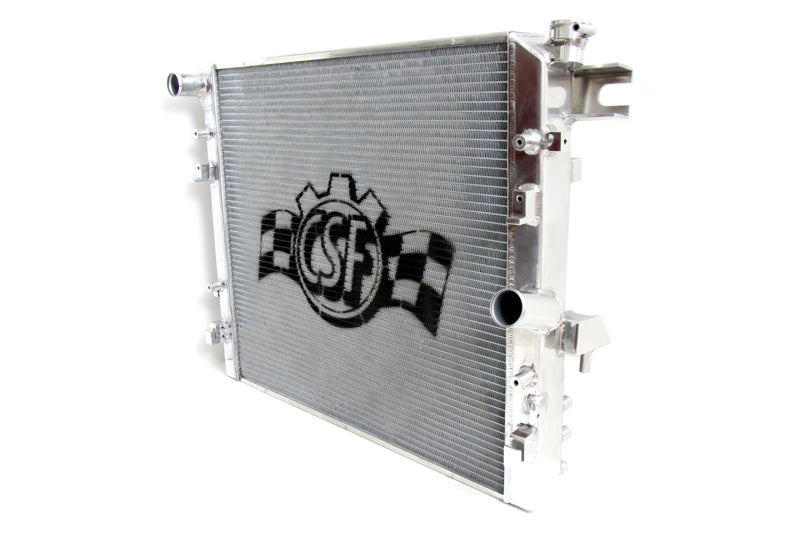

The CSF 7036 is a heavy-duty all-aluminum radiator for the 2007-2018 Jeep Wrangler (JK) V6, working with both automatic and manual transmissions. It uses a 2-row 42mm dual core with CSF's B-Tube Technology and multi-louvered 6.5mm fins for a dual liquid laminar flow. It is a drop-in fit with CNC-machined quick-connect connections that accept the OEM hoses, an all-aluminum race-style drain plug, and a satin finish, and it works with the OEM AC condenser and fan shroud.

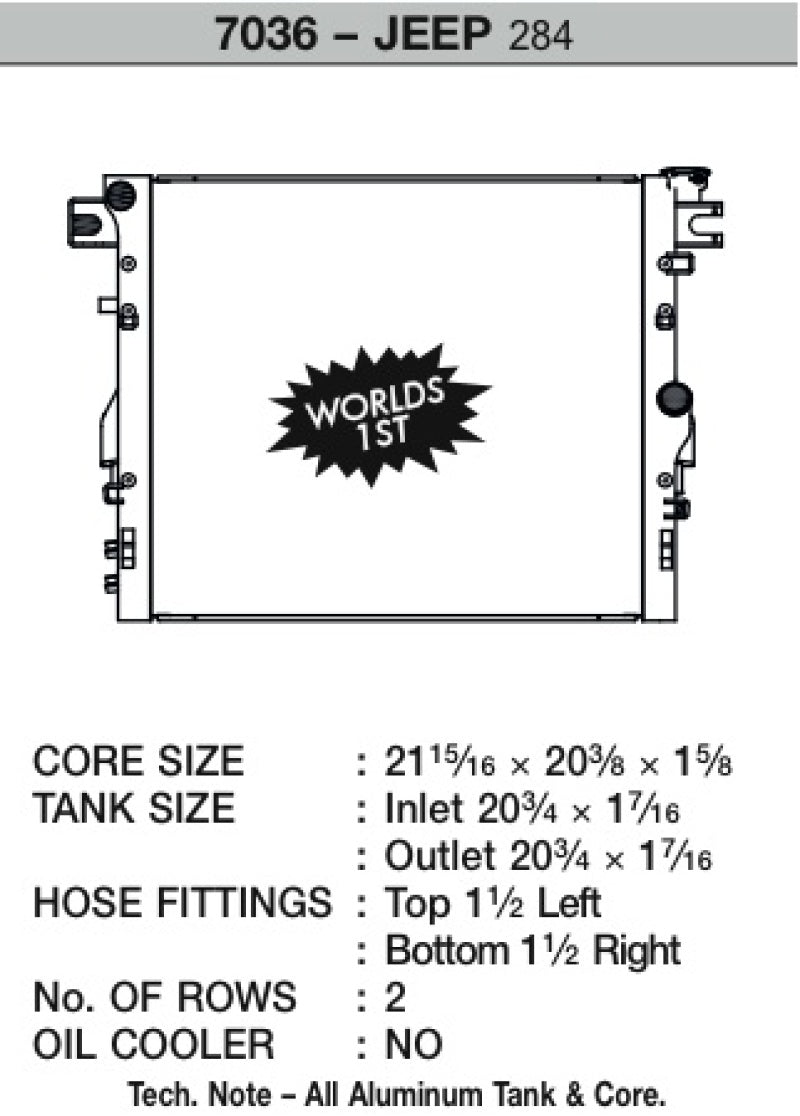

- Type: heavy-duty all-aluminum radiator
- Core: 2-row, 42mm dual core, B-Tube Technology
- Fins: multi-louvered, 6.5mm fin height
- Engine: V6
- Transmission: automatic or manual
- Fittings: CNC-machined quick-connect, accepts OEM hoses
- Finish: satin
- Part number: 7036
Vehicle Applications
Direct fit on the following (V6, automatic or manual):
- 2007 Jeep Wrangler (JK)
- 2008 Jeep Wrangler (JK)
- 2009 Jeep Wrangler (JK)
- 2010 Jeep Wrangler (JK)
- 2011 Jeep Wrangler (JK)
- 2012 Jeep Wrangler (JK)
- 2013 Jeep Wrangler (JK)
- 2014 Jeep Wrangler (JK)
- 2015 Jeep Wrangler (JK)
- 2016 Jeep Wrangler (JK)
- 2017 Jeep Wrangler (JK)
- 2018 Jeep Wrangler (JK)
FAQ
What vehicles does the CSF 7036 fit?
The 2007-2018 Jeep Wrangler (JK) V6, with automatic or manual transmissions.
Is it a heavy-duty radiator?
Yes. It is a heavy-duty all-aluminum upgrade over the factory cooling package.
Does it work with an automatic?
Yes. It fits both automatic and manual transmissions.
How many rows is the core?
A 2-row 42mm dual core with CSF's B-Tube Technology.
