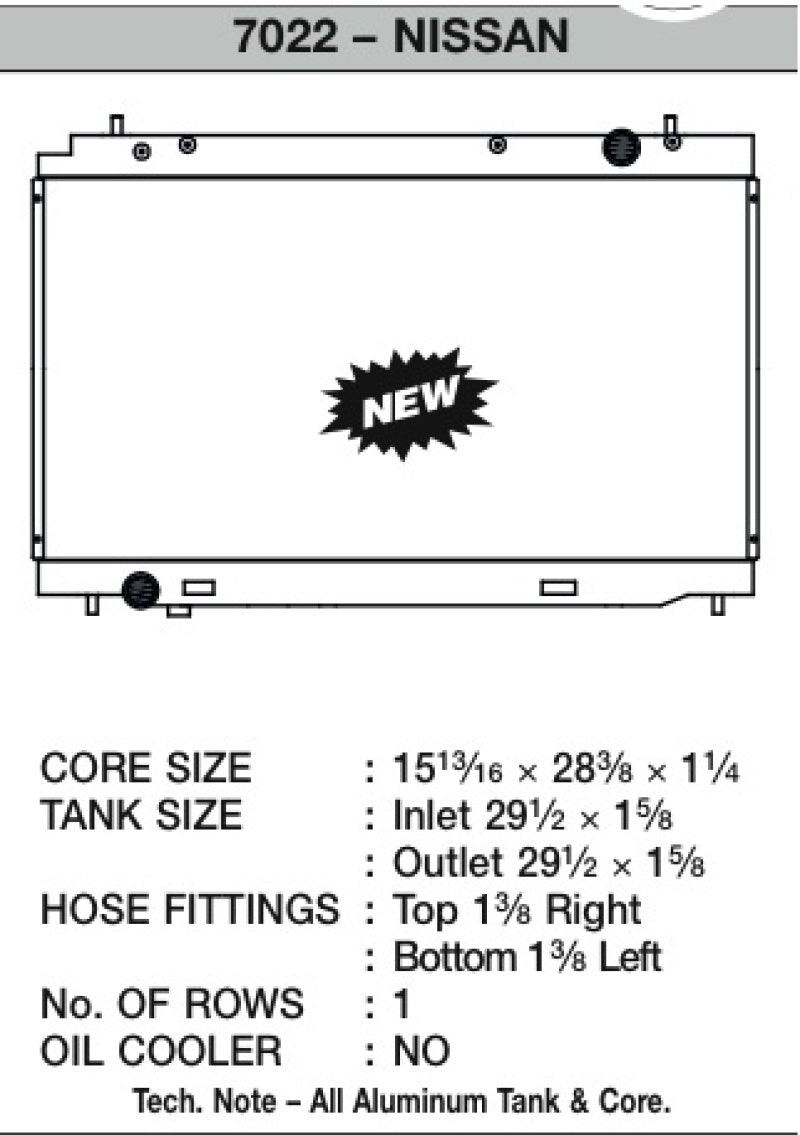

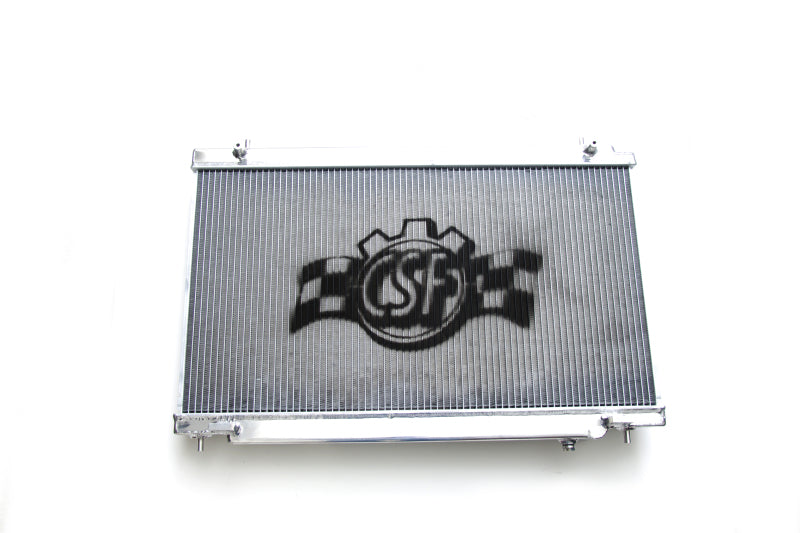

The CSF 7022 is an all-aluminum high-performance radiator for the 2007-2009 Nissan 350Z (Z33) with the VQ35HR 3.5L V6, for manual-transmission cars. It uses a 1-row 31mm core with CSF's B-Tube Technology and multi-louvered 6.5mm fins. It is a drop-in fit with CNC-machined quick-connect connections, an all-aluminum race-style drain plug, and a hand-polished mirror finish, and it accepts the OEM hoses, AC condenser, brackets, and fan shroud.
- Type: all-aluminum performance radiator

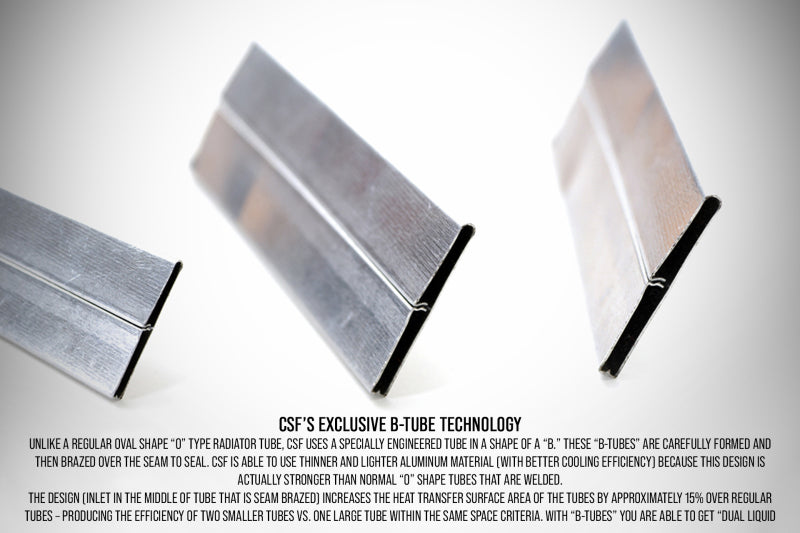

- Core: 1-row, 31mm, B-Tube Technology

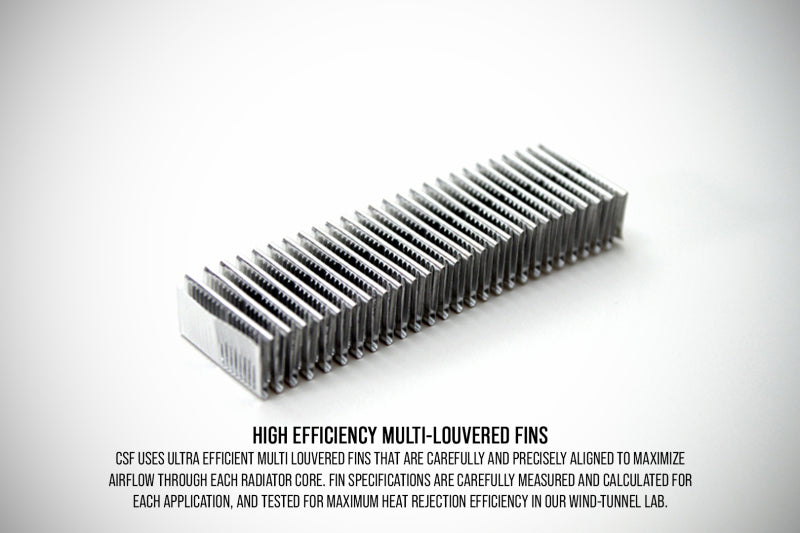

- Fins: multi-louvered, 6.5mm fin height
- Engine: VQ35HR 3.5L V6
- Transmission: manual

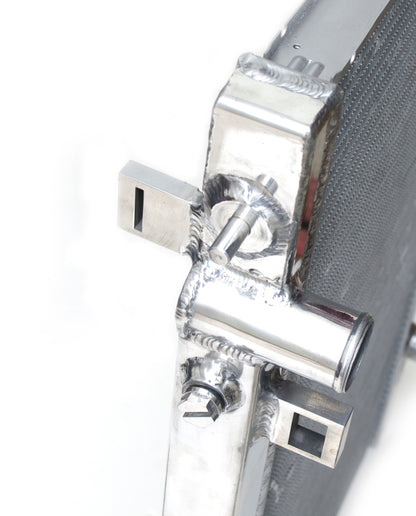

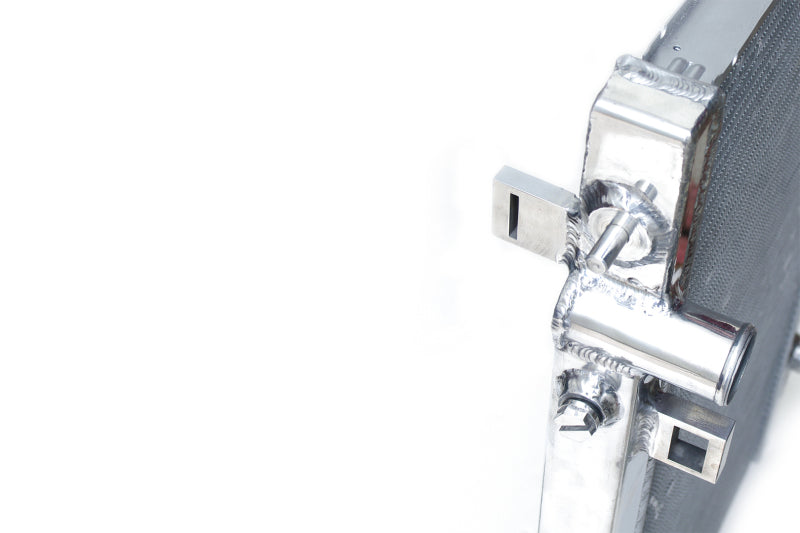

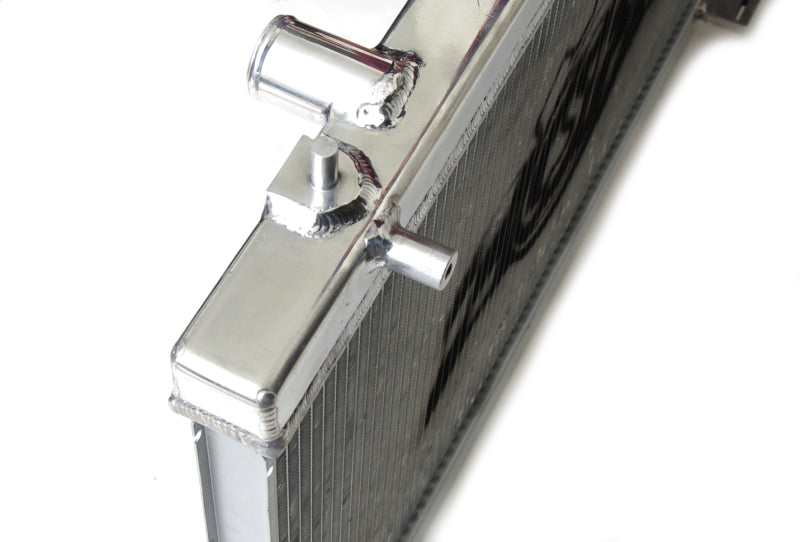

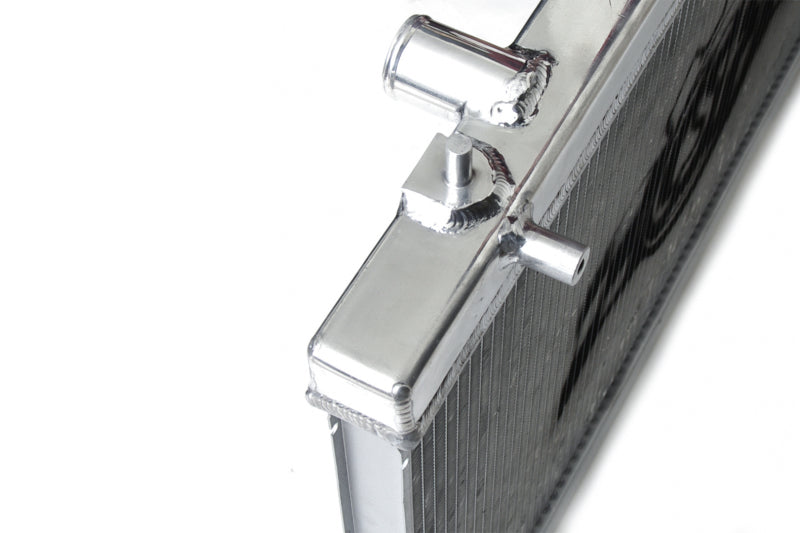

- Fittings: CNC-machined quick-connect, accepts OEM hoses
- Finish: hand-polished mirror finish
- OEM cross-reference: Nissan 21410-EV00A
- Part number: 7022
Vehicle Applications
Direct fit on the following (VQ35HR, manual transmission):
- 2007 Nissan 350Z
- 2008 Nissan 350Z
- 2009 Nissan 350Z
FAQ
What vehicles does the CSF 7022 fit?
The 2007-2009 Nissan 350Z (Z33) with the VQ35HR 3.5L V6, manual transmission.
How is it different from the DE-engine radiator?
The 7022 is built for the HR engine cars; the earlier DE-engine 350Z uses CSF 3329.
How many rows is the core?
A 1-row 31mm core with CSF's B-Tube Technology.
Is it a drop-in fit?
Yes. It accepts the OEM hoses, AC condenser, brackets, and fan shroud.
