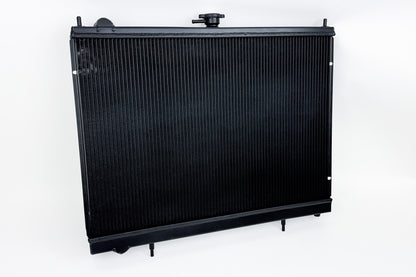

The CSF 7231B is the satin black version of CSF's all-aluminum high-performance radiator for the 1999-2002 Nissan Skyline R34 GT-R with the turbocharged 2.6L RB26 inline-6. It uses a 2-row 42mm core with 75 cooling tubes, 76 multi-louvered 6.5mm fin rows, and CSF's B-Tube Technology. It is 100 percent TIG-welded aluminum with aluminum end tanks in place of the OEM plastic tanks, pre-plugged 1/8 inch NPT and M16 sensor ports, and a 1.4 bar high-pressure cap. It fits both early and late R34 GT-Rs, though late models use different fan-shroud mounting hardware, and it does not fit non-GT-R R34 models.
- Type: all-aluminum performance radiator
- Core: 2-row, 42mm, 75 tubes, B-Tube Technology
- Fins: 76 rows, multi-louvered, 6.5mm fin height
- Engine: 2.6L RB26 turbo inline-6
- Construction: 100 percent TIG-welded aluminum, aluminum tanks
- Cap: 1.4 bar high-pressure
- Finish: satin black
- Base part: 7231 (silver)
- Part number: 7231B
Vehicle Applications
Direct fit on the following (2.6L RB26):
- 1999 Nissan Skyline R34 GT-R
- 2000 Nissan Skyline R34 GT-R
- 2001 Nissan Skyline R34 GT-R
- 2002 Nissan Skyline R34 GT-R
FAQ
What vehicles does the CSF 7231B fit?
The 1999-2002 Nissan Skyline R34 GT-R with the 2.6L RB26.
How is it different from the 7231?
The 7231B is the same radiator in a satin black finish; the 7231 is satin silver.
Does it fit non-GT-R R34 models?
No. It fits the R34 GT-R only.
Is it a drop-in fit?
Yes. It fits early and late R34 GT-Rs, though late models use different fan-shroud mounting hardware.
