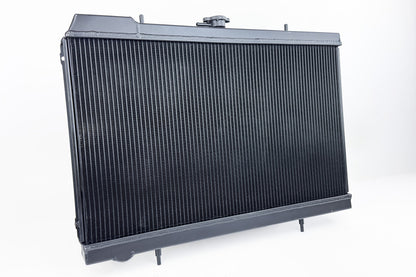

The CSF 7229B is the satin black version of CSF's all-aluminum high-performance radiator for the 1989-1994 Nissan Skyline R32, covering the GT-R, GTS, GTS-25, GTS-4, GTS-t, GTE, and GXi trims. It uses a 2-row 42mm core with 75 cooling tubes, 76 multi-louvered 6.5mm fin rows, and CSF's B-Tube Technology, which adds about 15 percent more heat-transfer surface area. It is 100 percent TIG-welded aluminum with aluminum end tanks, OEM-style inlet and outlet connections, and a 1.4 bar high-pressure cap, and it is a drop-in fit.
- Type: all-aluminum performance radiator
- Core: 2-row, 42mm, 75 tubes, B-Tube Technology
- Fins: 76 rows, multi-louvered, 6.5mm fin height
- Construction: 100 percent TIG-welded aluminum, aluminum tanks
- Cap: 1.4 bar high-pressure
- Finish: satin black
- Base part: 7229 (silver)
- Part number: 7229B
Vehicle Applications
Direct fit on the following R32 trims (GT-R, GTS, GTE, GXi):
- 1989 Nissan Skyline R32
- 1990 Nissan Skyline R32
- 1991 Nissan Skyline R32
- 1992 Nissan Skyline R32
- 1993 Nissan Skyline R32
- 1994 Nissan Skyline R32
FAQ
What vehicles does the CSF 7229B fit?
The 1989-1994 Nissan Skyline R32 GT-R, GTS, GTE, and GXi.
How is it different from the 7229?
The 7229B is the same radiator in a satin black finish; the 7229 is satin silver.
How many rows is the core?
A 2-row 42mm core with 75 tubes and CSF's B-Tube Technology.
Is it a drop-in fit?
Yes. It uses OEM-style connections and installs with no modifications.
