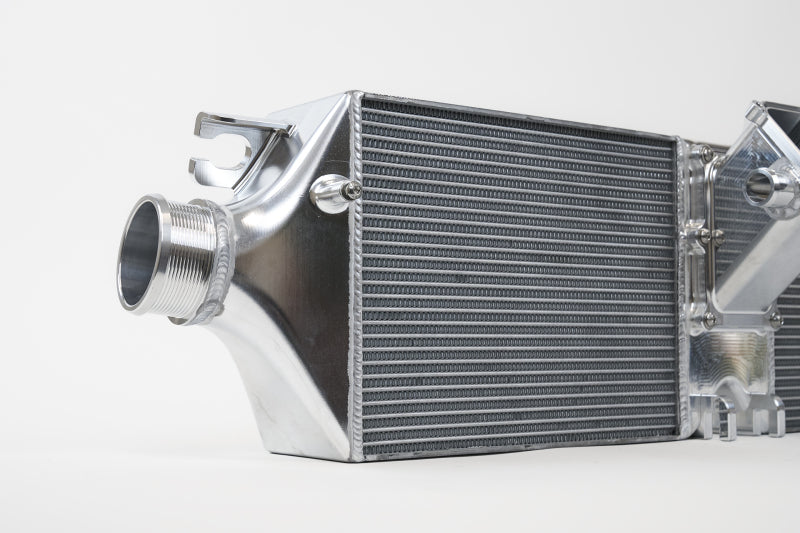

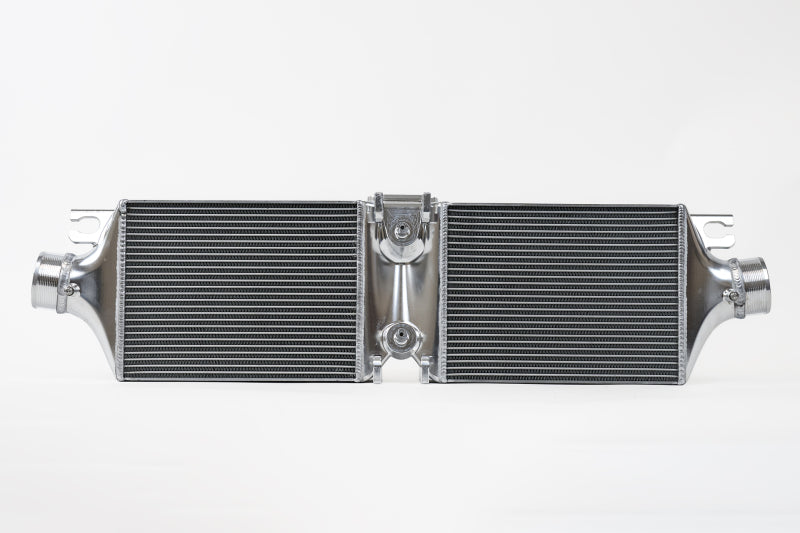

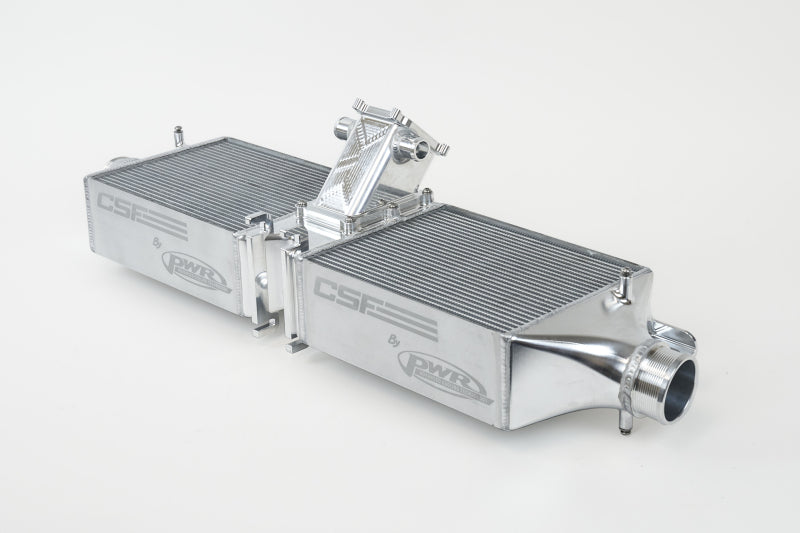

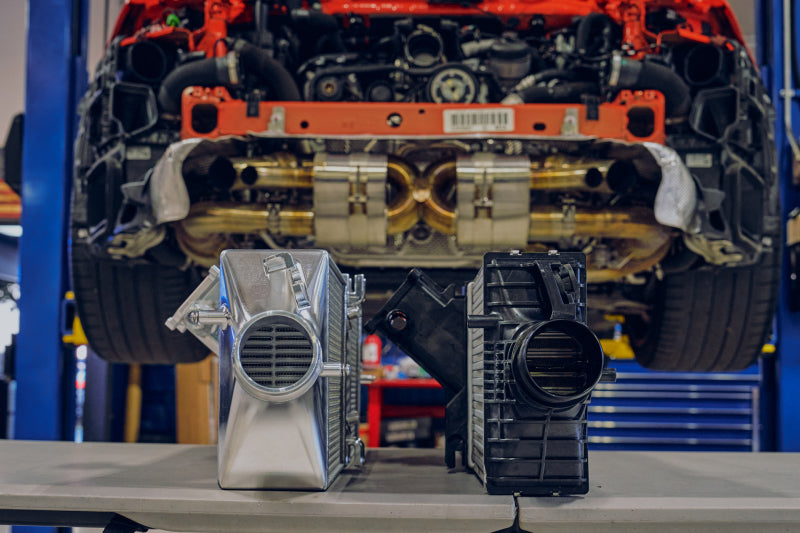

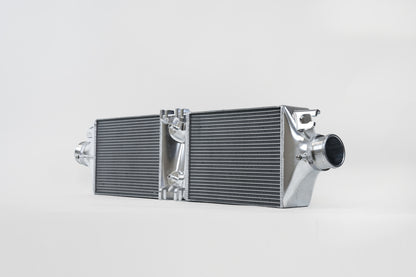

The CSF 8217 is a high-performance air-to-air intercooler system for the 2019-2024 Porsche 992.1 911 Carrera, Carrera S, Carrera T, Carrera 4, Carrera 4S, Carrera GTS, Carrera 4 GTS, and Targa 4 and 4S with the turbocharged 3.0L flat-six. It does not fit 992.2 models. It uses Formula-1-grade cores with rolled tubes and inner fins in a 2-row design, the same core technology as the 992 Turbo/S and 991 GT2 RS systems, carrying 26 tubes versus the OEM 12, with 3mm rolled tubes and 4.85mm fins. Construction is 100 percent TIG-welded billet aluminum end tanks in place of the OEM crimped plastic, at a light 17 lbs. It is a true plug-and-play drop-in fit that uses all factory mounting points and hardware.
- Type: air-to-air intercooler system

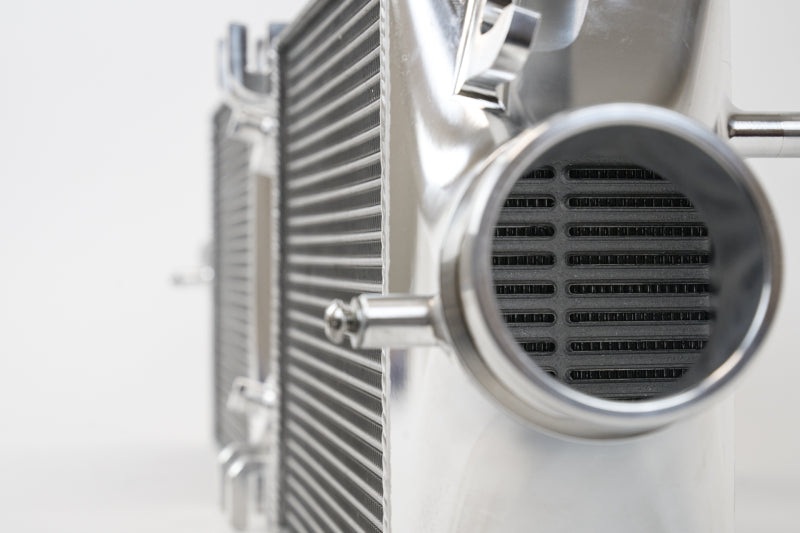

- Core: F1-grade 2-row, rolled tubes with inner fins
- Tubes/fins: 26 tubes (OEM 12), 3mm tubes, 4.85mm fins

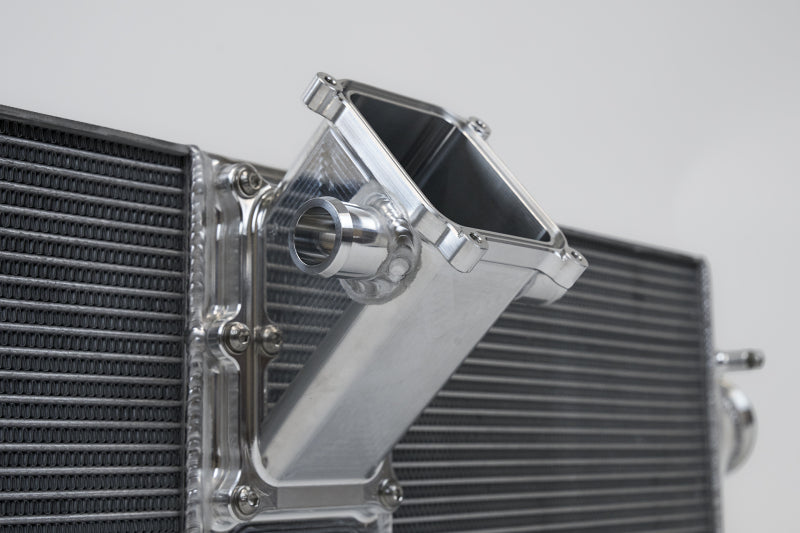

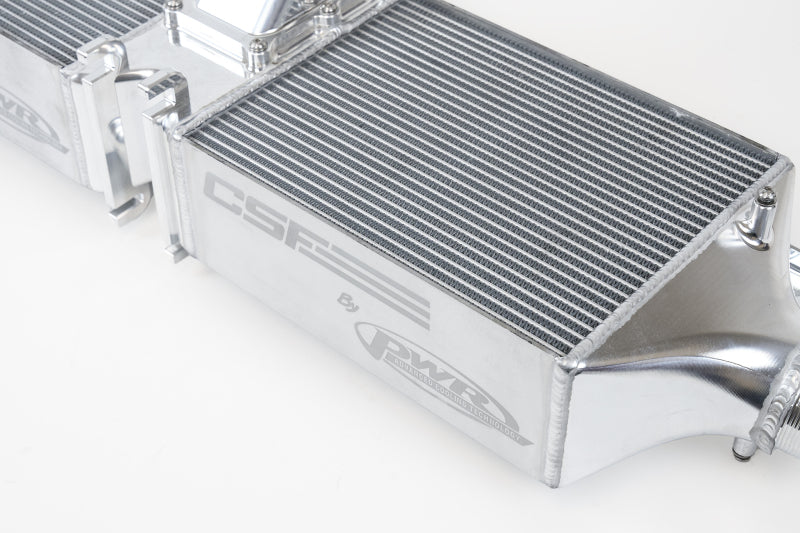

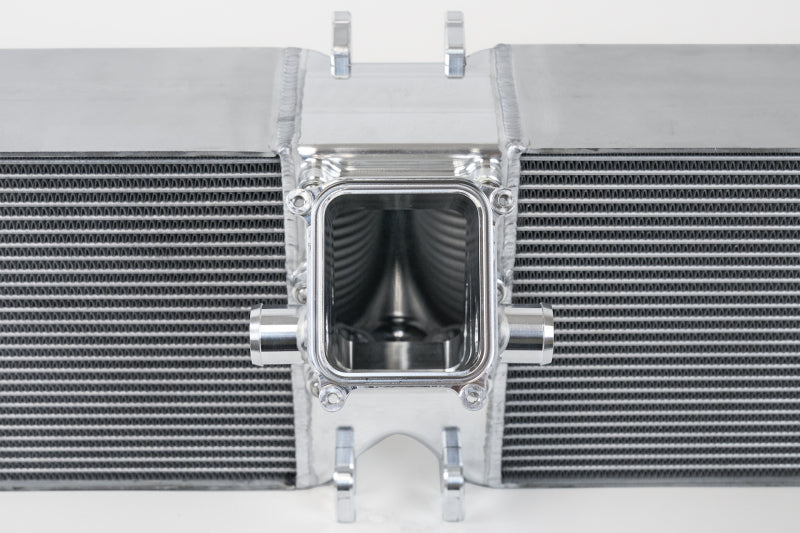

- End tanks: 100 percent TIG-welded billet aluminum (OEM crimped plastic)
- Weight: about 17 lbs
- Engine: 3.0L twin-turbo flat-six (992.1 only, NOT 992.2)

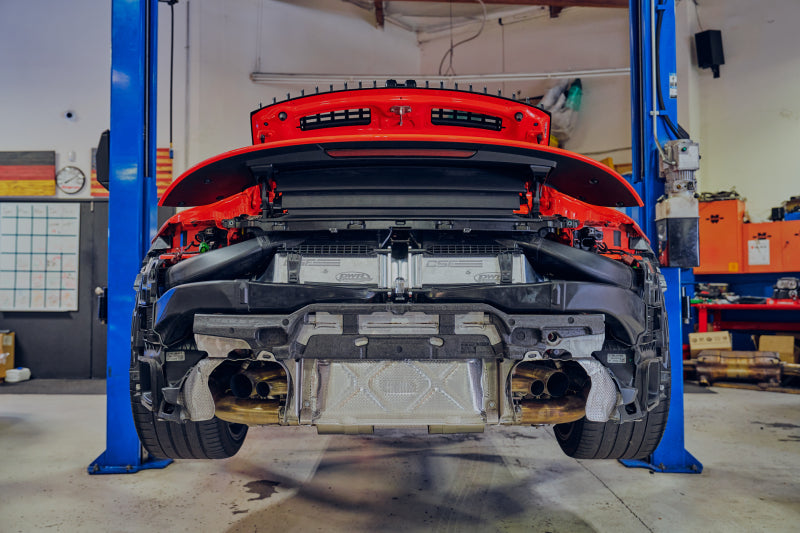

- Fitment: true plug-and-play drop-in, factory mounts and hardware
- Part number: 8217
Vehicle Applications
Direct fit on the following (992.1 only, 3.0L turbo flat-six):
- 2019 Porsche 911 Carrera (992.1, 3.0T)
- 2020 Porsche 911 Carrera (992.1, 3.0T)
- 2021 Porsche 911 Carrera (992.1, 3.0T)
- 2022 Porsche 911 Carrera (992.1, 3.0T)
- 2023 Porsche 911 Carrera (992.1, 3.0T)
- 2024 Porsche 911 Carrera (992.1, 3.0T)
- 2019 Porsche 911 Carrera S (992.1, 3.0T)
- 2020 Porsche 911 Carrera S (992.1, 3.0T)
- 2021 Porsche 911 Carrera S (992.1, 3.0T)
- 2022 Porsche 911 Carrera S (992.1, 3.0T)
- 2023 Porsche 911 Carrera S (992.1, 3.0T)
- 2024 Porsche 911 Carrera S (992.1, 3.0T)
- 2019 Porsche 911 Carrera 4 (992.1, 3.0T)
- 2020 Porsche 911 Carrera 4 (992.1, 3.0T)
- 2021 Porsche 911 Carrera 4 (992.1, 3.0T)
- 2022 Porsche 911 Carrera 4 (992.1, 3.0T)
- 2023 Porsche 911 Carrera 4 (992.1, 3.0T)
- 2024 Porsche 911 Carrera 4 (992.1, 3.0T)
- 2019 Porsche 911 Carrera 4S (992.1, 3.0T)
- 2020 Porsche 911 Carrera 4S (992.1, 3.0T)
- 2021 Porsche 911 Carrera 4S (992.1, 3.0T)
- 2022 Porsche 911 Carrera 4S (992.1, 3.0T)
- 2023 Porsche 911 Carrera 4S (992.1, 3.0T)
- 2024 Porsche 911 Carrera 4S (992.1, 3.0T)
- 2019 Porsche 911 Carrera GTS (992.1, 3.0T)
- 2020 Porsche 911 Carrera GTS (992.1, 3.0T)
- 2021 Porsche 911 Carrera GTS (992.1, 3.0T)
- 2022 Porsche 911 Carrera GTS (992.1, 3.0T)
- 2021 Porsche 911 Targa 4 (992.1, 3.0T)
- 2022 Porsche 911 Targa 4 (992.1, 3.0T)
- 2023 Porsche 911 Targa 4 (992.1, 3.0T)
- 2024 Porsche 911 Targa 4 (992.1, 3.0T)
- 2021 Porsche 911 Targa 4S (992.1, 3.0T)
- 2022 Porsche 911 Targa 4S (992.1, 3.0T)
- 2023 Porsche 911 Targa 4S (992.1, 3.0T)
- 2024 Porsche 911 Targa 4S (992.1, 3.0T)
FAQ
What vehicles does the CSF 8217 fit?
The 2019-2024 Porsche 992.1 911 Carrera, S, T, 4, 4S, GTS, and Targa 4/4S with the 3.0L turbo flat-six. It does not fit 992.2 models.
How much larger are the cores?
26 tubes versus the OEM 12, with F1-grade rolled tubes.
What are the end tanks made of?
100 percent TIG-welded billet aluminum, versus the OEM crimped plastic.
Is it a drop-in fit?
Yes. It is a true plug-and-play fit using all factory mounting points and hardware.
