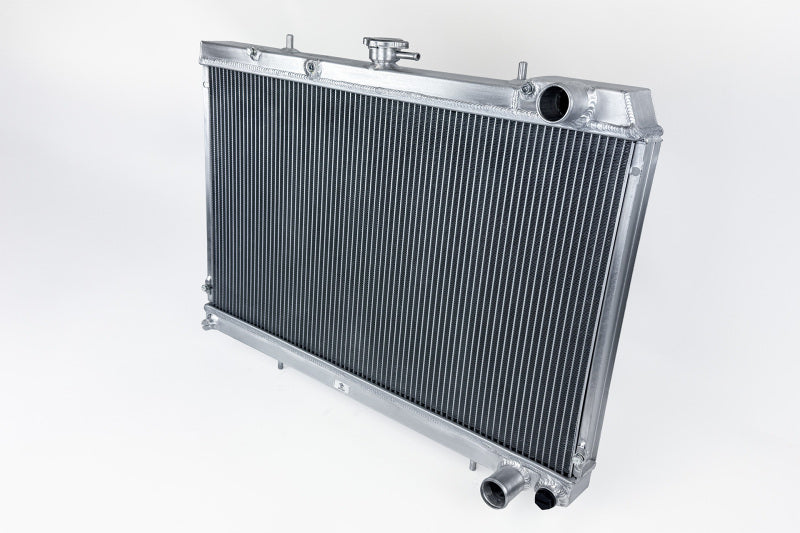

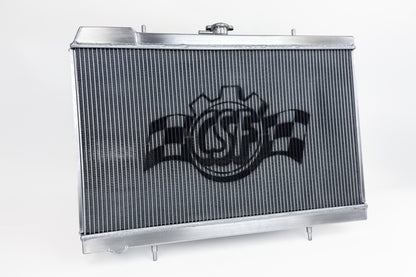

The CSF 7229 is a high-performance all-aluminum radiator for the 1989-1994 Nissan Skyline R32, including the RB26DETT-powered GT-R and V-Spec, plus the GTS-t, GTS-4, GTS-25, GTE, and GXi models. It uses a 2-row 42mm ultra-high-performance dual core with 75 cooling tubes built on CSF's B-Tube Technology, which raises tube surface area about 15 percent for dual laminar flow, and ultra-efficient 6.5mm multi-louvered fins across 76 fin rows. It is 100 percent aluminum TIG-welded with aluminum tanks in place of the OEM plastic units, and it ships with a 1.4-bar high-pressure CSF cap. It mounts in the factory location with no modifications. A black-finish version is offered for the R33 and R34 as 7230B and 7231B.
- Core: 2-row 42mm ultra-high-performance dual core
- Tubes: 75 cooling tubes with CSF B-Tube Technology
- Fins: 6.5mm tall multi-louvered (76 fin rows)

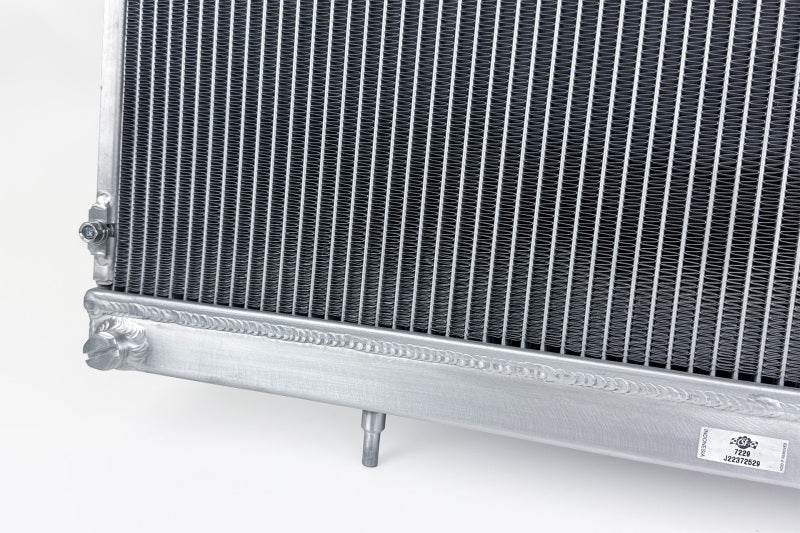

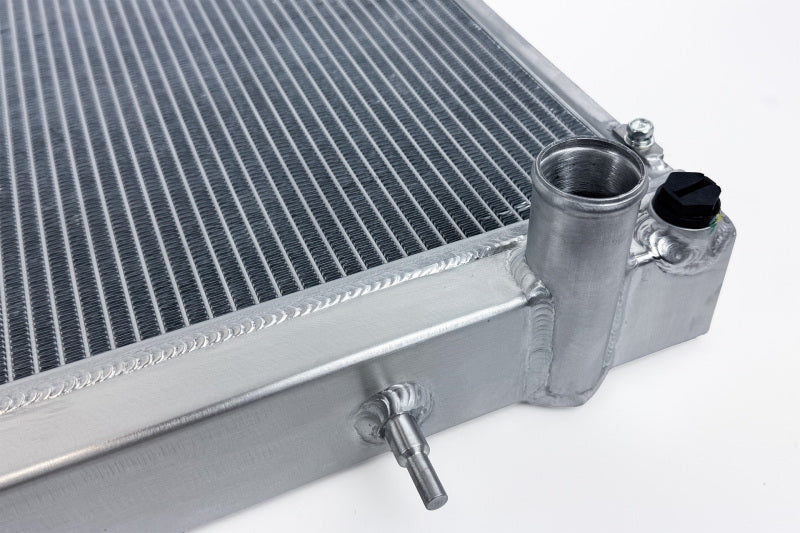

- Construction: 100 percent aluminum TIG-welded, aluminum tanks (OEM plastic)

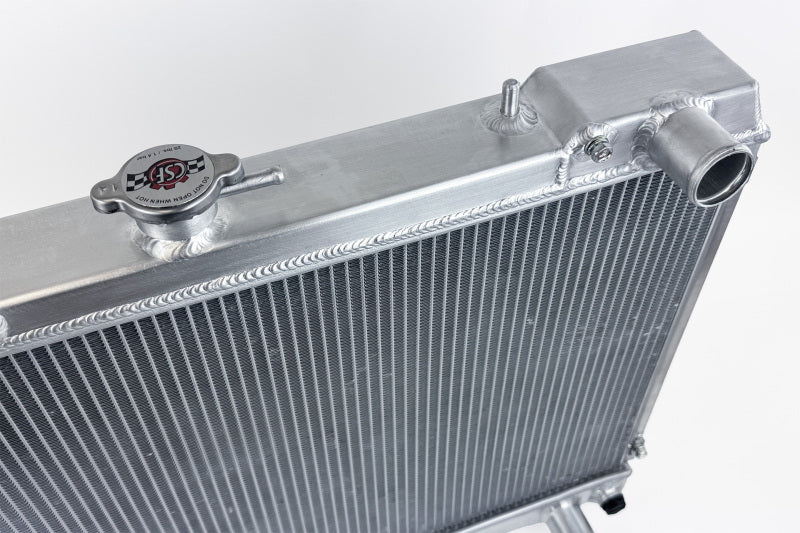

- Cap: 1.4-bar high-pressure radiator cap with CSF logo
- Fitment: factory-location drop-in, no modifications
- Engines: RB26DETT (GT-R), RB20/RB25 (GTS)
- Part number: 7229
Vehicle Applications
Direct fit on the following:
- 1989 Nissan Skyline GT-R (R32, RB26DETT)
- 1990 Nissan Skyline GT-R (R32, RB26DETT)
- 1991 Nissan Skyline GT-R (R32, RB26DETT)
- 1992 Nissan Skyline GT-R (R32, RB26DETT)
- 1993 Nissan Skyline GT-R (R32, RB26DETT)
- 1994 Nissan Skyline GT-R (R32, RB26DETT)
- 1989 Nissan Skyline GTS-t (R32)
- 1990 Nissan Skyline GTS-t (R32)
- 1991 Nissan Skyline GTS-t (R32)
- 1992 Nissan Skyline GTS-t (R32)
- 1993 Nissan Skyline GTS-t (R32)
- 1989 Nissan Skyline GTS-4 (R32)
- 1990 Nissan Skyline GTS-4 (R32)
- 1991 Nissan Skyline GTS-4 (R32)
- 1992 Nissan Skyline GTS-4 (R32)
- 1993 Nissan Skyline GTS-4 (R32)
- 1989 Nissan Skyline GTS-25 (R32)
- 1990 Nissan Skyline GTS-25 (R32)
- 1991 Nissan Skyline GTS-25 (R32)
- 1992 Nissan Skyline GTS-25 (R32)
- 1993 Nissan Skyline GTS-25 (R32)
- 1989 Nissan Skyline GTE (R32)
- 1990 Nissan Skyline GTE (R32)
- 1991 Nissan Skyline GTE (R32)
- 1992 Nissan Skyline GTE (R32)
- 1993 Nissan Skyline GTE (R32)
- 1989 Nissan Skyline GXi (R32)
- 1990 Nissan Skyline GXi (R32)
- 1991 Nissan Skyline GXi (R32)
- 1992 Nissan Skyline GXi (R32)
- 1993 Nissan Skyline GXi (R32)
FAQ
What vehicles does the CSF 7229 fit?
The 1989-1994 Nissan Skyline R32 GT-R, plus the GTS-t, GTS-4, GTS-25, GTE, and GXi variants.
How is the core built?
A 2-row 42mm dual core with 75 B-Tube cooling tubes and 6.5mm multi-louvered fins.
Is it all-aluminum?
Yes. It is 100 percent aluminum TIG-welded with aluminum tanks, replacing the OEM plastic tanks.
Does it need modifications to install?
No. It mounts in the factory location and ships with a 1.4-bar high-pressure cap.
