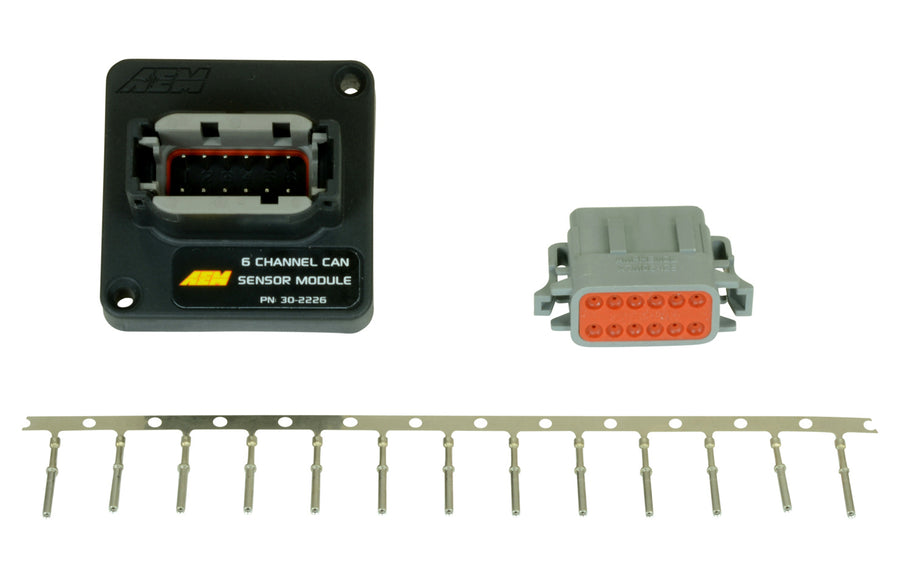

AEM's 6 Channel CAN Sensor Module provides an affordable, easy way to add temperature, pressure, fuel level, and tachometer signals onto a CD Carbon Digital Dash over AEMnet CAN-bus. It supports the Bosch CAN 2.0b standard, making it compatible with many third-party devices that accept a programmable CAN bus input, including non-AEM ECUs, dashes, or loggers.
Specifications:
- Inputs: 2x temperature (thermistor), 2x 0-5V analog, 1x fuel level (0-250 ohm), 1x tachometer/coil
- Enclosure: IP67 potted, dust/water-resistant
- Connector: 12-pin DTM-style
- Protocol: Bosch CAN 2.0b / AEMnet
- Category: Control Modules
- Warranty: Manufacturer's 1 Year Warranty
- Part Number: 30-2226
This product carries a California Proposition 65 warning per the manufacturer's data.
FAQ
What does the AEM 30-2226 module do?
It converts up to six analog/sensor inputs, two temperature, two 0-5V analog, one fuel level, and one tachometer, into an AEMnet CAN-bus stream for a CD Carbon dash or compatible logger.
Is the module weatherproof?
Yes, it has an IP67-rated potted enclosure and sealed connector that is dust-tight and protected against water spray.
Can it be used with a non-AEM ECU?
Yes, it supports the Bosch CAN 2.0b standard, making it compatible with many third-party CAN-based dashes, ECUs, and loggers.
