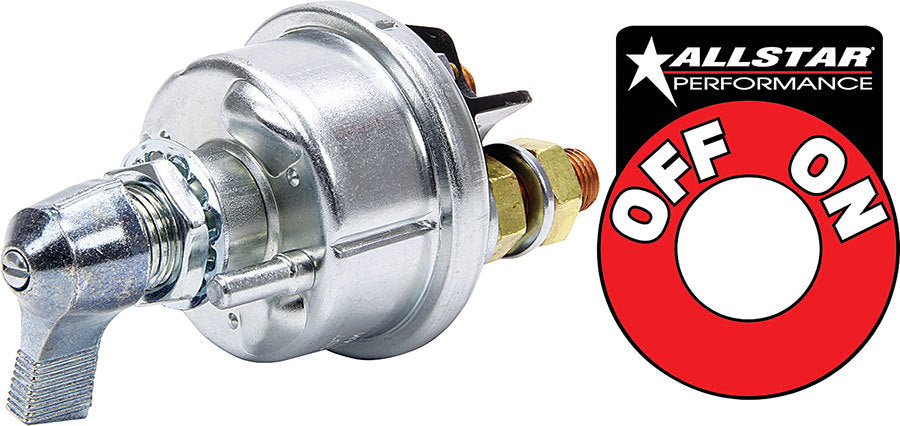

Heavy-duty rotary battery disconnect switch that mounts in a 3/4in hole in a panel up to 1/4in thick. Rated 300 amp continuous duty on 1/2in-20 terminals, sealed to resist weather and internal corrosion. Includes an on/off decal and alternator disconnect terminals. Double-pole design also has 10-32 studs rated at 20 amp continuous duty. Instruction sheet included.
Spec Sheet: Allstar Spec Sheet
Compatibility:
Fits a 3/4in mounting hole in a panel up to 1/4in thick; includes alternator terminals. Sized by mounting hole and terminal spec, not by vehicle make or model.
FAQ
How is this different from ALL80154?
It's the same 300 amp heavy duty switch, plus dedicated alternator disconnect terminals.
What's the amp rating?
The amp rating is 300 amp continuous duty on the main terminals.
Is an instruction sheet included?
Yes, an instruction sheet is included.
