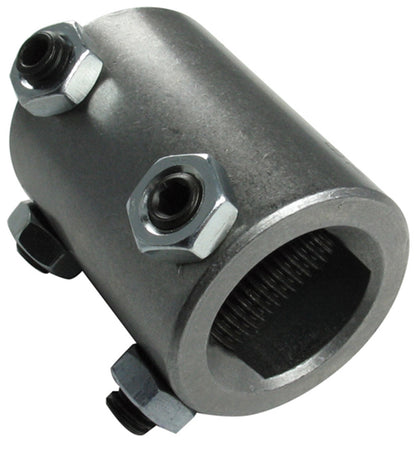

This Borgeson steering coupler is a 2-inch straight steel extension used to join two shafts and extend a steering box, rack and pinion shaft, or column shaft, and can eliminate the need for a universal joint in some setups. It is welded or pinned to the un-splined end of a shaft; welding is acceptable because the coupler has no moving parts to damage and its steel resists heat distortion from welding.
Specifications:
- Material: Steel, natural finish
- Coupler type: Straight steel coupler, 2in. long
- Shaft end 1: 1in. Double-D
- Shaft end 2: 3/4in. Double-D
- Weight: 0.52 lbs
- Part Number: 315249
FAQ
What sizes does this coupler connect?
It connects a 1-inch Double-D shaft to a 3/4-inch Double-D shaft.
Can this coupler be welded?
Yes. Welding is acceptable because the coupler has no moving parts to damage and its steel construction resists heat damage from welding.
Is this a direct replacement or does it require modification?
The coupler assembly must be pinned and/or welded to the shaft ends it connects; it is not a bolt-in part.
What is this coupler used for?
It is used to extend a steering box, rack and pinion shaft, or column shaft, and in some setups can eliminate the need for a universal joint.
