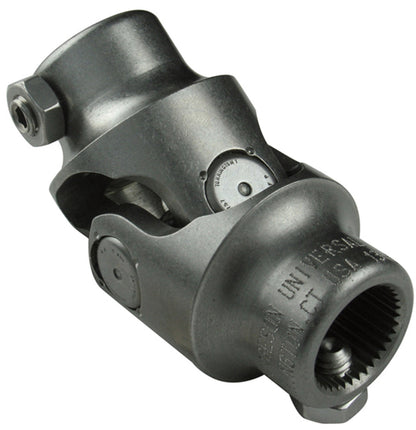

Borgeson stainless steel single steering universal joints are machined from solid billet stainless steel on CNC equipment, engineered and tested to meet or exceed OEM automotive requirements. Available in multiple Double-D and spline sizes, they let steering columns, shafts, and boxes from different manufacturers be mated together and operate at angles up to 35°. Staked needle bearing caps prevent loosening and adjustment malfunction, matching the reliability of OEM u-joints.
Specifications:
- Material: Solid billet stainless steel
- End 1: 3/4in. Double-D
- End 2: 3/4in. Double-D

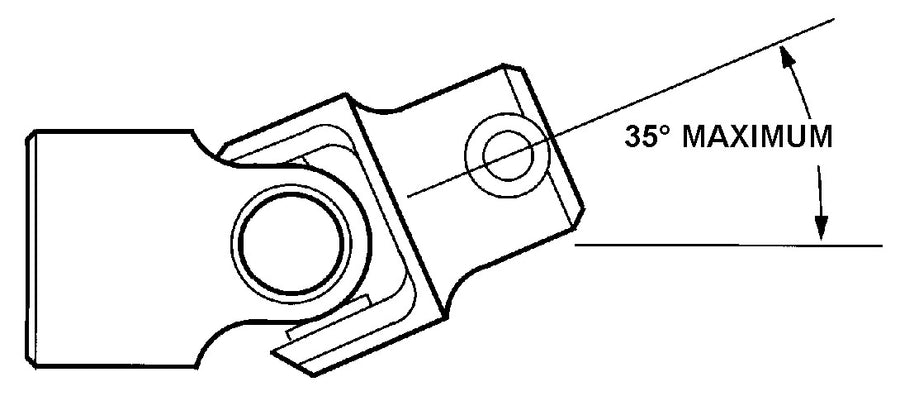

- Maximum operating angle: 35°
- Bearing design: Sealed needle bearing, staked caps, maintenance-free
- Made in the USA
- Part Number: 114949
FAQ
What sizes does this u-joint fit?
This Borgeson stainless steel u-joint fits a 3/4in. Double-D on both ends.
What is the maximum operating angle?
It operates at angles up to 35°.
Why choose a stainless steel u-joint over steel?
Stainless steel offers added corrosion resistance while retaining the same precision-machined, sealed needle bearing design as Borgeson's steel u-joints.
Is this u-joint maintenance-free?
Yes, it uses a sealed needle bearing design with staked caps that prevent loosening, so no maintenance is required.
