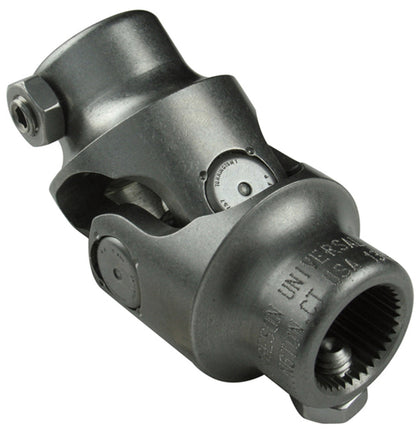

Borgeson steering universal joints are precision machined from solid billet stainless steel on CNC equipment and tested to meet or exceed OEM requirements. This single steering universal joint operates at angles up to 35° and uses staked needle bearing caps, similar to OEM design, to resist loosening. Borgeson's Double-D and spline combinations let this joint mate steering components from different manufacturers.
Specifications:
- Type: Single steering universal joint
- Material: Stainless steel
- End 1: 3/4in Double-D
- End 2: 1in Double-D

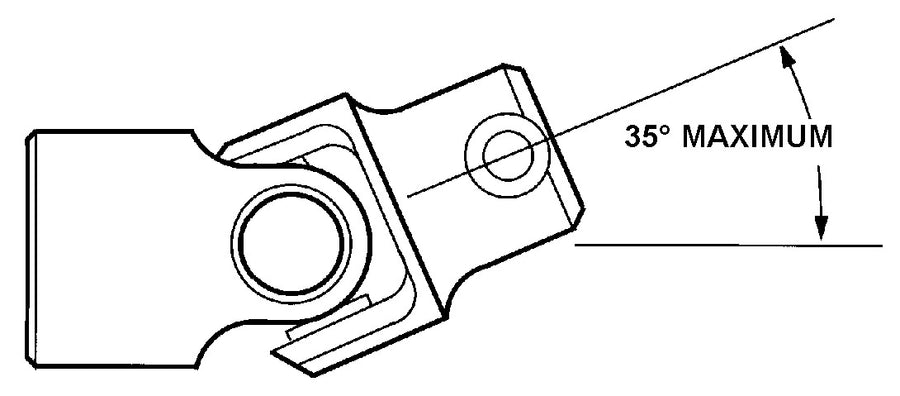

- Max operating angle: 35°
- Bearing: Sealed needle bearing, staked caps
- Made in the USA
- Part Number: 114952
FAQ
What angle can this u-joint handle?
Up to 35°.
Does it require maintenance?
No, it uses a sealed, maintenance-free needle bearing design with staked caps, similar to OEM u-joints.
What end sizes does this joint use?
3/4in Double-D on one end and 1in Double-D on the other.
Why choose stainless steel over standard steel?
Stainless steel resists corrosion and offers a brighter, more finished appearance than plain steel.
