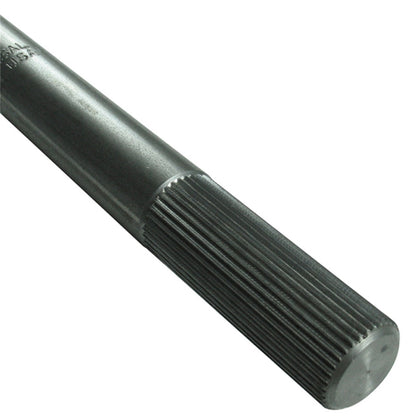

This Borgeson steering shaft features a 3/4"-36 spline machined into a solid steel shaft, with two inches of spline cut into each end. It can be trimmed up to 1" per end to dial in a precise fit between the steering column and steering box.
Specifications:
- Material: Steel
- Spline: 3/4"-36
- Overall Length: 10in.
- Spline Length: 2in. on each end
- Trimmable up to 1in. off each end
- Made in the USA
- Part Number: 409210
FAQ
What spline size does this steering shaft use?
It uses a 3/4"-36 spline on both ends, matching common Borgeson steering box and coupler applications.
Can this shaft be shortened to fit?
Yes, up to 1" can be trimmed from each end without losing spline engagement.
What is the overall length of this shaft?
It measures 10in. overall, with 2in. of spline machined into each end.
What material is this shaft made from?
It is machined from solid steel.
