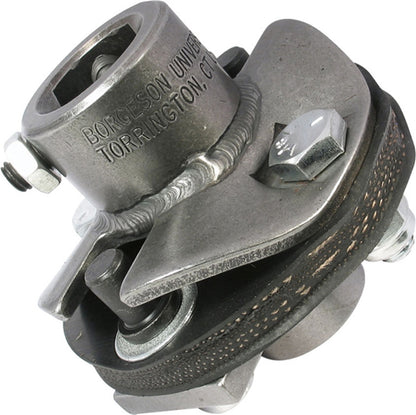

On some factory applications, a flexible coupling or rag joint was used to attach the column to the steering box when there was perfect alignment between the two. If the original column or box is changed, the stock coupling may not work. This OEM-style rag joint fits 3/4in.-36 spline X 3/4in.-36 spline and should only be used when there is a straight, perfect alignment between the connecting shaft and steering box.
Specifications:
- Style: OEM rag joint

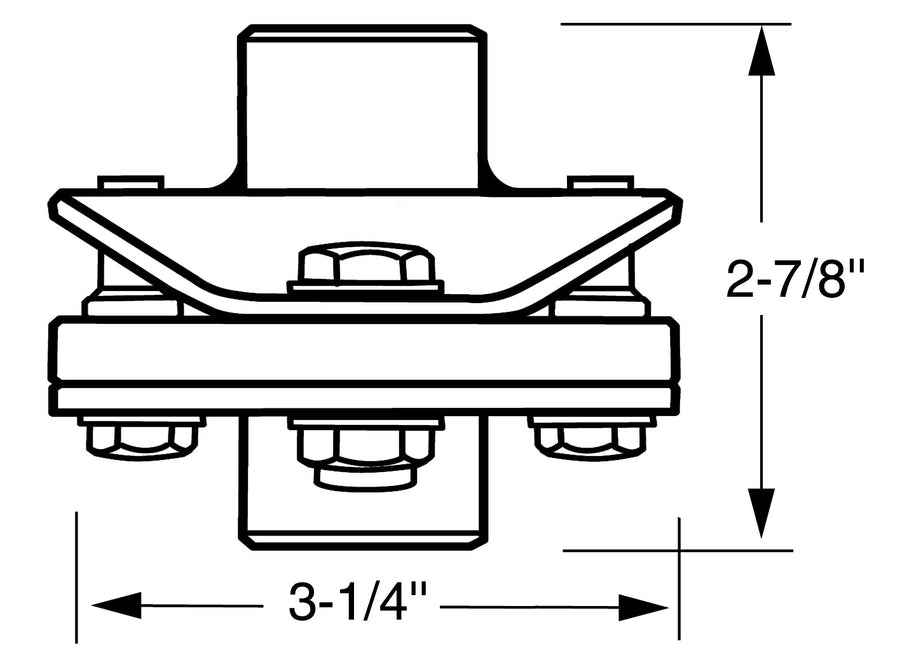

- Configuration: 3/4in.-36 spline X 3/4in.-36 spline
- Material: Steel
- Function: Vibration isolator, reduces road vibration and hydraulic noise
- Application: Straight connections only
- Manufactured in the USA
- Part Number: 053434
FAQ
What does a rag joint do?
It acts as a vibration isolator to reduce road vibration and hydraulic noise transmitted through the steering column.
Can this coupler be used on a misaligned connection?
No, flexible rag joint couplers should only be used when there is a straight, perfect alignment between the connecting shaft and steering box.
What spline sizes does this coupler use?
3/4in.-36 spline on both ends.
What material is this coupler made from?
Steel.
