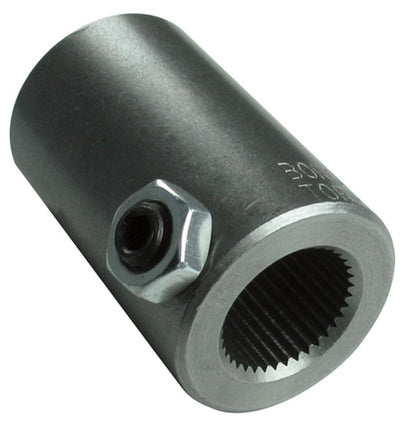

A 2in. straight extension, called a coupler, extends the steering box, rack and pinion shaft, or column shaft, and can sometimes eliminate the need for a universal joint. It can be welded or pinned to the un-splined end of a shaft since welding is safe on couplers as there are no moving parts to damage. This coupler fits a 9/16in.-36 spline on one end and a 3/4in. smooth bore on the other.
Specifications:
- Material: Steel
- Configuration: 9/16in.-36 spline X 3/4in. smooth bore
- Length: 2in. straight extension
- Installation: Weld or pin to shaft
- Manufactured in the USA
- Part Number: 311200
FAQ
What is a steering coupler used for?
It extends the steering box, rack and pinion shaft, or column shaft, and can sometimes eliminate the need for an additional universal joint.
Can this coupler be welded?
Yes, welding is acceptable since the coupler has no moving parts to damage and the steel is less susceptible to heat damage.
What sizes does this coupler connect?
9/16in.-36 spline on one end and 3/4in. smooth bore on the other.
What material is this coupler made from?
Precision-machined solid billet steel.
