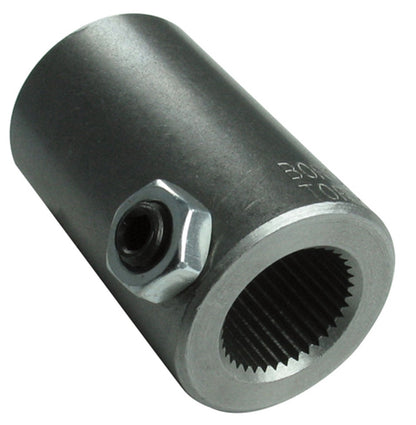

Borgeson steel steering couplers are a straight 2in. extension used to lengthen a steering box, rack-and-pinion, or column shaft, sometimes eliminating the need for an additional universal joint. Couplers can be welded or pinned to the unsplined end of a shaft; because there are no moving parts, welding does not risk damaging the coupler. Precision machined from solid billet steel, couplers are available in the same spline and Double-D sizes as Borgeson's universal joints.
Specifications:
- Material: Solid billet steel
- End 1: 3/4in.-36 spline
- End 2: 3/4in.-36 spline
- Extension length: 2in.
- Installation: Weldable or pinnable, no moving parts
- Made in the USA
- Part Number: 313434
FAQ
What is a steering coupler used for?
It is a straight 2in. extension that lengthens a steering box, rack-and-pinion, or column shaft, and can sometimes eliminate the need for an additional universal joint.
What sizes does this coupler fit?
It fits a 3/4in.-36 spline on both ends.
Can this coupler be welded?
Yes. Since a coupler has no moving parts, welding it to a shaft will not cause damage.
What material is this coupler made from?
It is precision machined from solid billet steel.
