Borgeson universal joints are machined on CNC equipment from solid billet steel, stainless steel, or aluminum, and are engineered to meet or exceed current production vehicle requirements. Available in 4 Double-D sizes and 14 spline sizes, they can be combined to mate steering components from different manufacturers, such as connecting a GM column to a Mustang rack and pinion.
Specifications:
- Solid billet steel construction

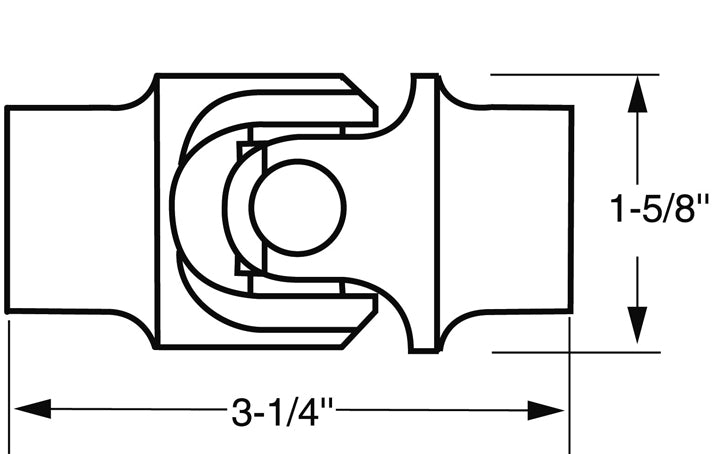

- Fits 1in.-48 spline x 1in. Double-D

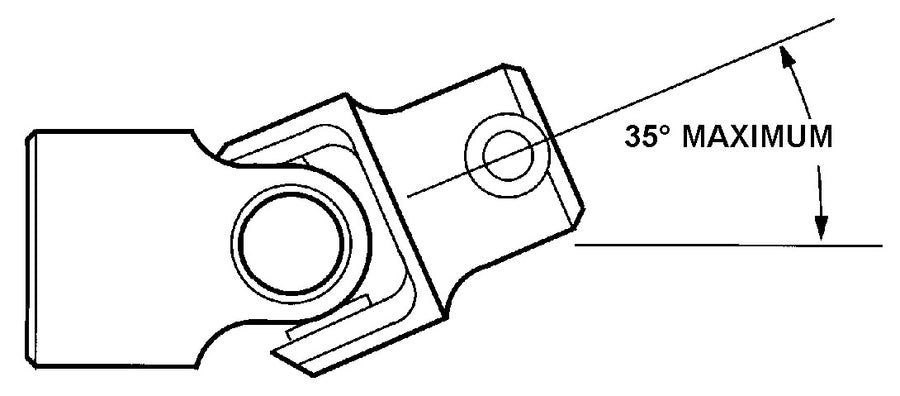

- Accommodates up to a 35-degree operating angle
- Zero radial play
- Staked needle bearing caps prevent loosening
- Made in the USA
- Part Number: 014352
FAQ
What sizes does this universal joint connect?
1in.-48 spline on one end and 1in. Double-D on the other.
What is the maximum operating angle?
Up to 35 degrees.
What keeps the bearing caps from loosening?
Staked needle bearing caps, similar to OEM universal joints, prevent loosening and adjustment malfunction.
Can this connect components from different manufacturers?
Yes. Borgeson's range of Double-D and spline sizes lets this joint mate components such as a GM column to a Mustang rack and pinion, or a Ford column to a Saginaw box.
