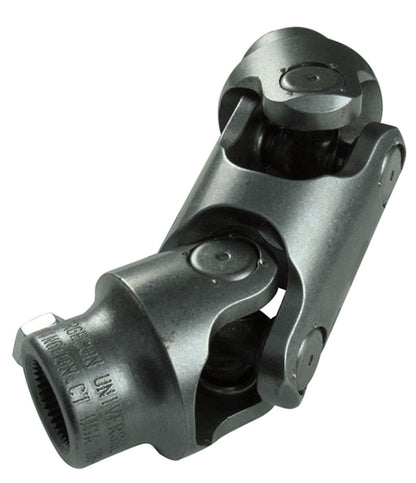

Borgeson double steering universal joints are machined from solid billet steel on CNC equipment, engineered and tested to meet or exceed OEM automotive requirements. The double-joint design allows for extreme angles up to 70°, letting steering columns, shafts, and boxes from different manufacturers be mated together. Staked needle bearing caps prevent loosening and adjustment malfunction, matching the reliability of OEM u-joints.
Specifications:
- Material: Solid billet steel
- Type: Double universal joint
- End 1: 3/4in. Double-D
- End 2: 3/4in. Double-D
- Maximum operating angle: 70°
- Bearing design: Sealed needle bearing, staked caps, maintenance-free
- Made in the USA
- Part Number: 024949
FAQ
Why use a double universal joint instead of a single?
A double universal joint design accommodates extreme steering angles up to 70°, well beyond what a single joint can handle.
What sizes does this joint fit?
It fits a 3/4in. Double-D on both ends.
What is the maximum operating angle?
Up to 70°.
What material is this joint made from?
It is precision machined from solid billet steel.
