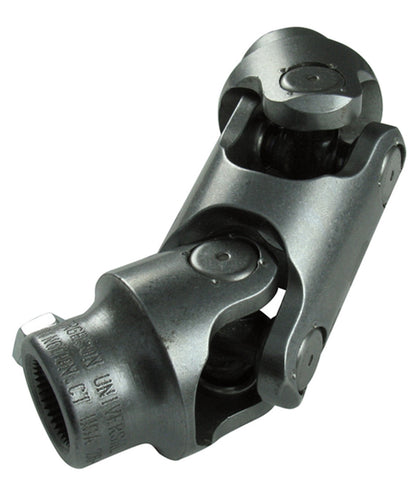

This Borgeson double universal joint is CNC-machined from solid billet steel for applications requiring greater operating angles than a single joint allows. It connects a 3/4in. Double-D shaft to a 1in. Double-D shaft and operates at angles up to 70 degrees, with staked needle bearing caps that prevent loosening.
Specifications:
- Material: Solid billet steel
- Style: Double universal joint
- Bore 1: 3/4in. Double-D
- Bore 2: 1in. Double-D
- Maximum operating angle: 70 degrees
- Sealed needle bearing design, maintenance free
- Made in the USA
- Part Number: 024952
FAQ
Why use a double u-joint instead of a single?
A double universal joint allows for extreme operating angles, up to 70 degrees, compared to 35 degrees for a single joint.
What sizes does this joint connect?
3/4in. Double-D on one side and 1in. Double-D on the other.
Does this joint require maintenance?
No, it uses a maintenance-free sealed needle bearing design.
What material is this joint made from?
Solid billet steel.
