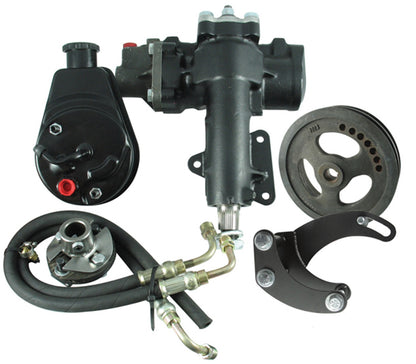

This Borgeson kit converts a manual-steering 1963-1966 small-block Corvette with a short water pump to power steering, using a re-manufactured GM Delphi 600 integral gearbox. The box bolts directly to the factory mounting location and fits the stock pitman arm, delivering a quicker 12.7:1 ratio in place of the factory setup's leaky control valve. Not compatible with the 327 Hi-Po, since the power steering pulley is not correct for that engine.
Specifications:
- Steering Box: Re-manufactured GM Delphi 600
- Ratio: 12.7:1
- Includes: steering box, pump, pulley, bracket, hoses, rag joint
- For small block Chevy with short water pump and 3/4"-36 spline column
- Factory column requires collapsing or shortening 1-2in. for clearance
- Vehicles with factory power steering require a drag link adapter
- Not compatible with 327 Hi-Po engines
- Made in the USA
- Part Number: 999016
Vehicle Applications:
- 1963 Chevrolet Corvette
- 1964 Chevrolet Corvette
- 1965 Chevrolet Corvette
- 1966 Chevrolet Corvette
FAQ
What ratio does this Corvette conversion kit provide?
A 12.7:1 ratio via the re-manufactured GM Delphi 600 gearbox.
Does this kit fit a 327 Hi-Po Corvette?
No, it will not fit the 327 Hi-Po because the power steering pulley is not correct for that engine.
What does the kit include?
The Delphi 600 steering box, pump, pulley, bracket, hoses, and rag joint.
What column spline does this kit require?
A 3/4"-36 spline column, with the factory column collapsed or shortened 1-2in. for clearance.
