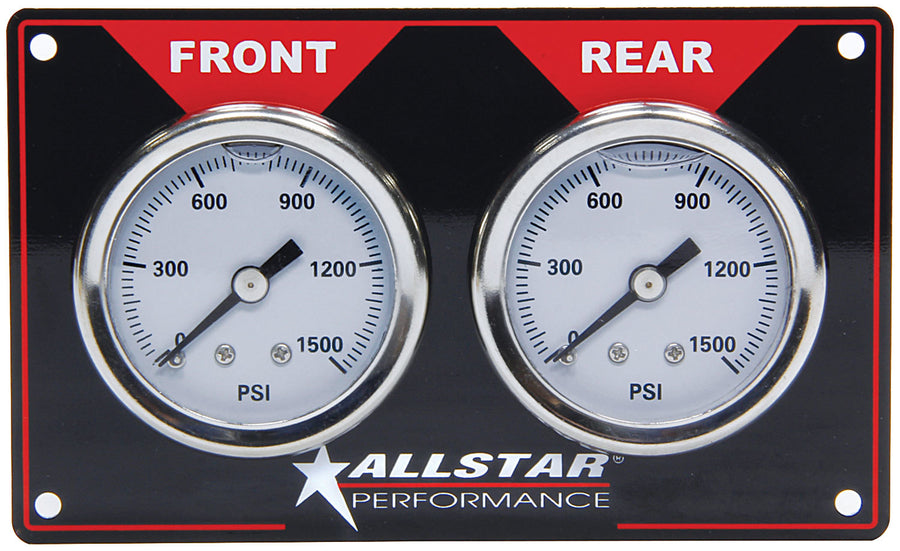

This brake bias gauge panel mounts two liquid-filled gauges to show actual front and rear line pressure for making brake bias changes before or during a race. Gauges read 0-1,500 PSI with 1/8" NPT male fittings and bleeder valves. Panel measures 2-3/4" x 4-1/2" in a horizontal orientation.
Spec Sheet: Allstar Spec Sheet
Compatibility:
Universal fit. Not vehicle-specific — mounts to any dash, panel, or gauge pod sized for this gauge.
FAQ
What PSI range do the gauges read?
These gauges read 0-1,500 PSI.
What size is the panel?
This panel measures 2-3/4" x 4-1/2" in a horizontal orientation.
