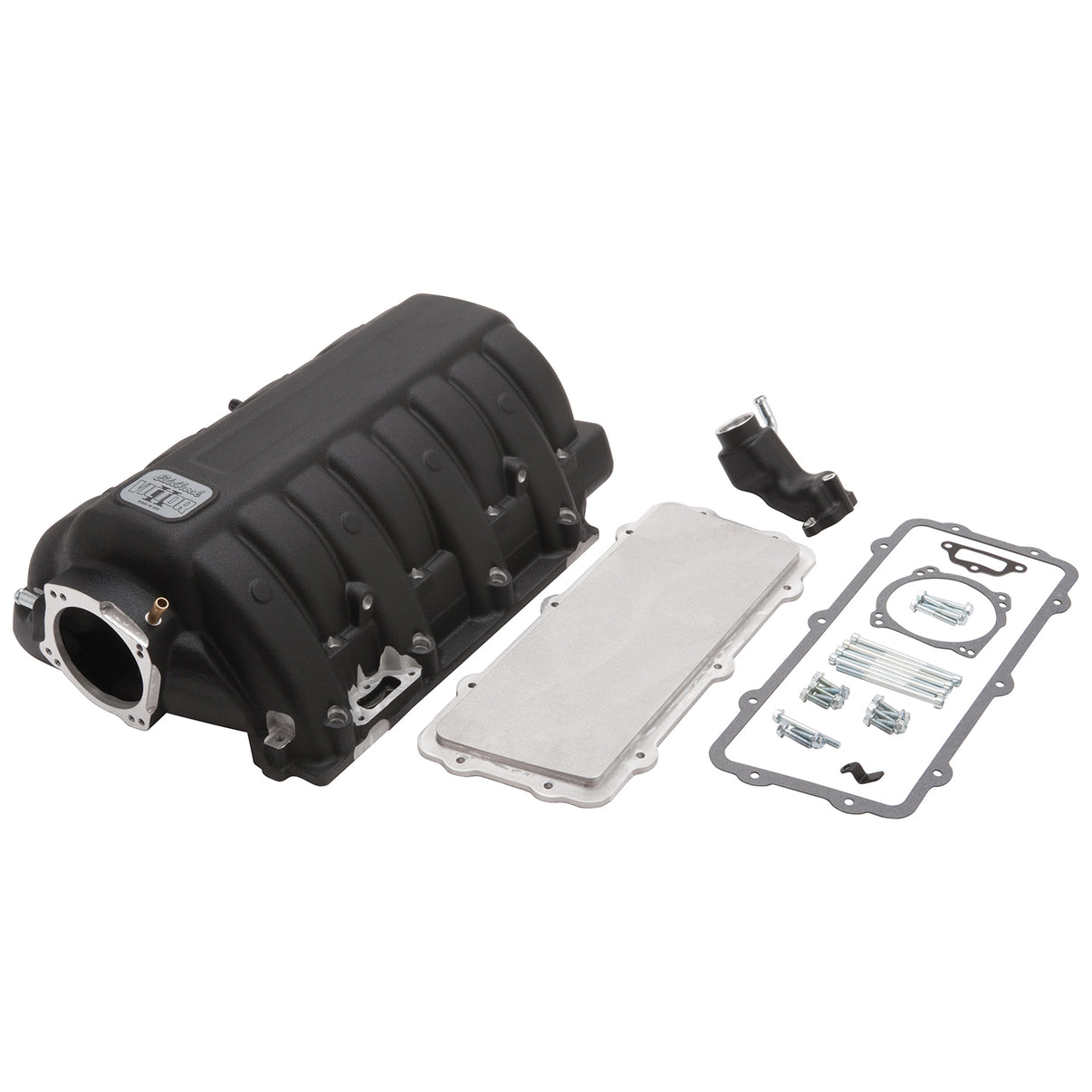

Edelbrock Edelbrock Victor EFI Intake Manifold for Gen III HEMI (Eagle or WT) 7179
Specifications:
| Basic Operating RPM Range | 1500-6500 |
| Grade Type | Performance |
| Flange Type | Throttle Body XT |
| CNC Ported | No |
| Material | Aluminum |
| Gasket Or Seal Included | No |
| Single Or Dual Plane Type | Single |
| Center Maximum Height | 7.850 |
| Front Maximum Height | 6.060 |
| EGR Port | No |
| Vehicle Model | Chrysler |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish | Black Powder Coated |
| Series | Victor |
| Rear Maximum Height | 7.850 |
| Description_ABR | Intake Mnfld |
| Description_INV | Black Victor Gen 3 Hemi Intake Manifold |
| Description_LAB | Victor EFI Gen III Chrysler HEMI Intake Manifold |
| Description_ASM | Chrysler:Gen III HEMI:345 (5.7L)/372 (6.1L)/392 (6.4L) |
| Description_EXT | Edelbrock Victor EFI Intake Manifold for Gen III HEMI (Eagle or WT) |
| Description_MKT | Edelbrock part #7179 Victor EFI intake manifold is designed for the "Eagle or WT" Chrysler 5.7L, 6.1L and 6.4L Gen III HEMI engines with fuel injection. The overall design is similar to the factory 6.1L SRT intake manifold, but with longer higher flowing runners and features relocated fuel injector bosses for improved flow and added nitrous bosses along the near vertical runners. The front inlet can accommodate the factory style 80mm throttle body or the 92mm Hellcat throttle body. In testing, the Victor EFI prototype made 25 hp over the stock intake manifold on a 6.4L engine. Manifold will clear most hoods without modifications. Required fuel rail kit #3647 available separately. |
| Description_TRA | Port flanges have machined grooves to accept stock port seals. |
| Description_TRA | Manifold Dimensions: A-6.06", B-7.85", C-18.30", D-2.25", E-0 Deg |
| Description_TRA | Port exit dimensions: 1.83" x 1.85" |
| Description_TRA | Throttle body recommendations: Factory OEM or aftermarket |
| Description_TRA | 6.4L Challengers/Chargers/300s MUST use an OEM or OEM replacement 6.1L air intake system and without intake runner control valve. |
| Description_DEF | Engine Intake Manifold |
