Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85532 for Ford 351W engines 85532
Regular Price
$101.95
Press & drag to view

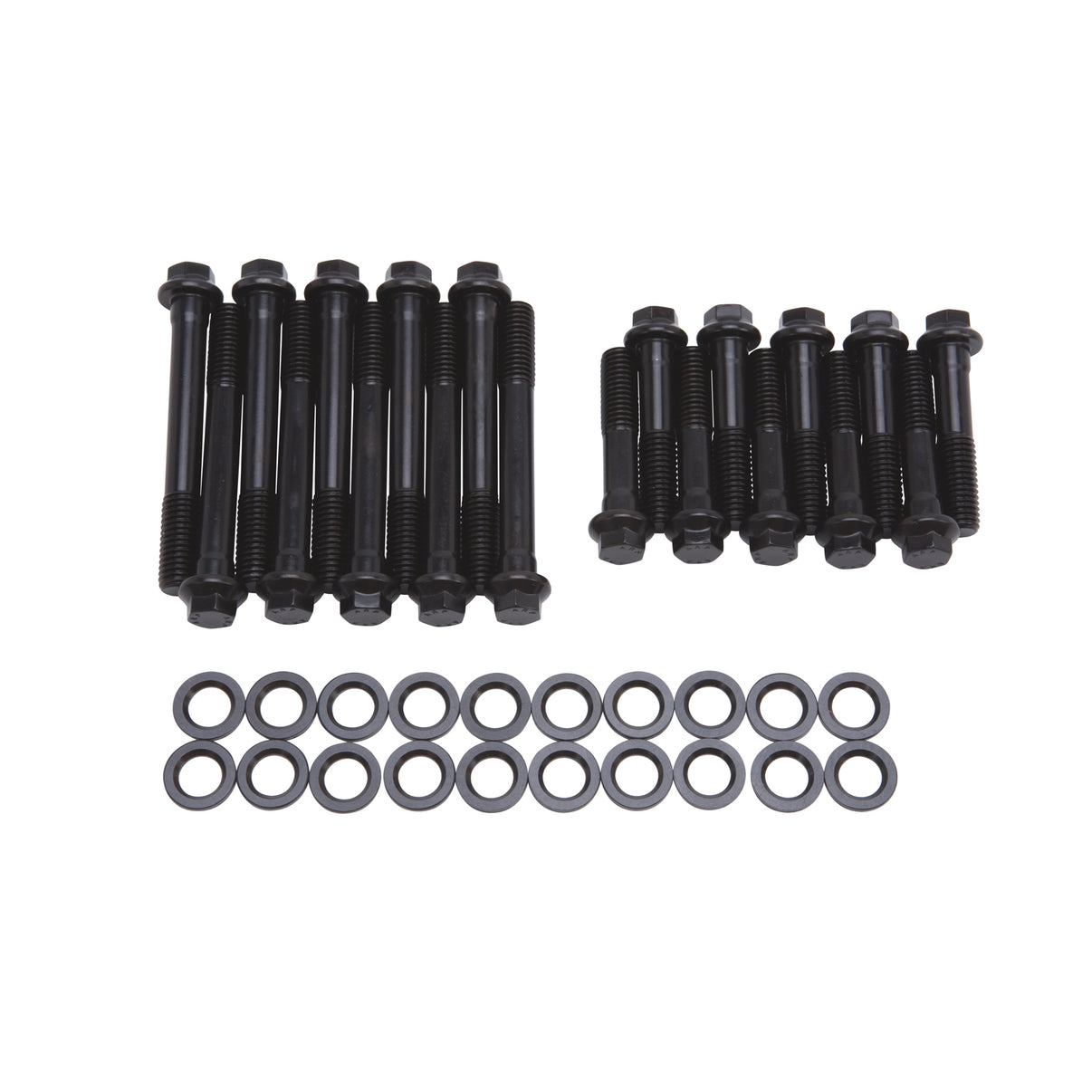

Edelbrock E-Series Cylinder Head Bolt Kit #85532 is a high-quality set of bolts for use with Ford 351W heads. These bolts can also be used on 302-based Ford engines that have been converted to -inch head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.
Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85532 for Ford 351W engines 85532
Specifications:
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| 9 | Hex |
| 10 | 8740 Chromoly |
| 546 | Coarse |
| 557 | 0.5 |
| 2596 | 2.5 |
| 3072 | Yes |
| Finish | Black Oxide |
| Grade Type | Performance |
| Quantity | Kit |
| Length | (10) 4.00 in, (10) 2.50 |
| Description_ABR | HeadBoltKit |
| Description_INV | Edelbrock Cylinder Head Bolt Kit #85532 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85532 for Ford 351W engines |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85532 for Ford 351W engines |
| Description_SHP | None |
| Description_ASM | Ford:Small-Block Windsor:351W (5.8L) |
| Description_EXT | Edelbrock #85532 Head Bolt Kit is for 1969-96 S/B Ford 351W Engines with Edelbrock 60217, 60219, 60225, 60229, 60249, 60255, 60259, 60319, 60329, 60349, 60359, 60367, 60369, 60379, 60389, 60399, 602515, 602519, 602479, & 602579. 1/2" Bolts. |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85532 is a high-quality set of bolts for use with Ford 351W heads. These bolts can also be used on 302-based Ford engines that have been converted to -inch head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head. |
| Description_FAB | For Ford 351W heads |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_FAB | Heat treating with rolled threads for superior form and strength |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | Edelbrock E logo stamped on bolt head |
| Description_TRA | The Edelbrock #85532 is made specifically for 9.5 deck height small block Ford V8. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| Description_TRA | or 30, 60, 90, 100-110). Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. BOSS 302 CLONE ENGINES. Use Edelbrock Head Bolt Bushings with Integral Washers #9680 in place of washers supplied with your head bolt kit. Torque 7/16" bolts to 65-70 ft./lbs. in four steps (30, 40, 50, 65-70) following the factory tightening sequence. ALL ENGINES: A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_DEF | Engine Cylinder Head Bolt Set |
