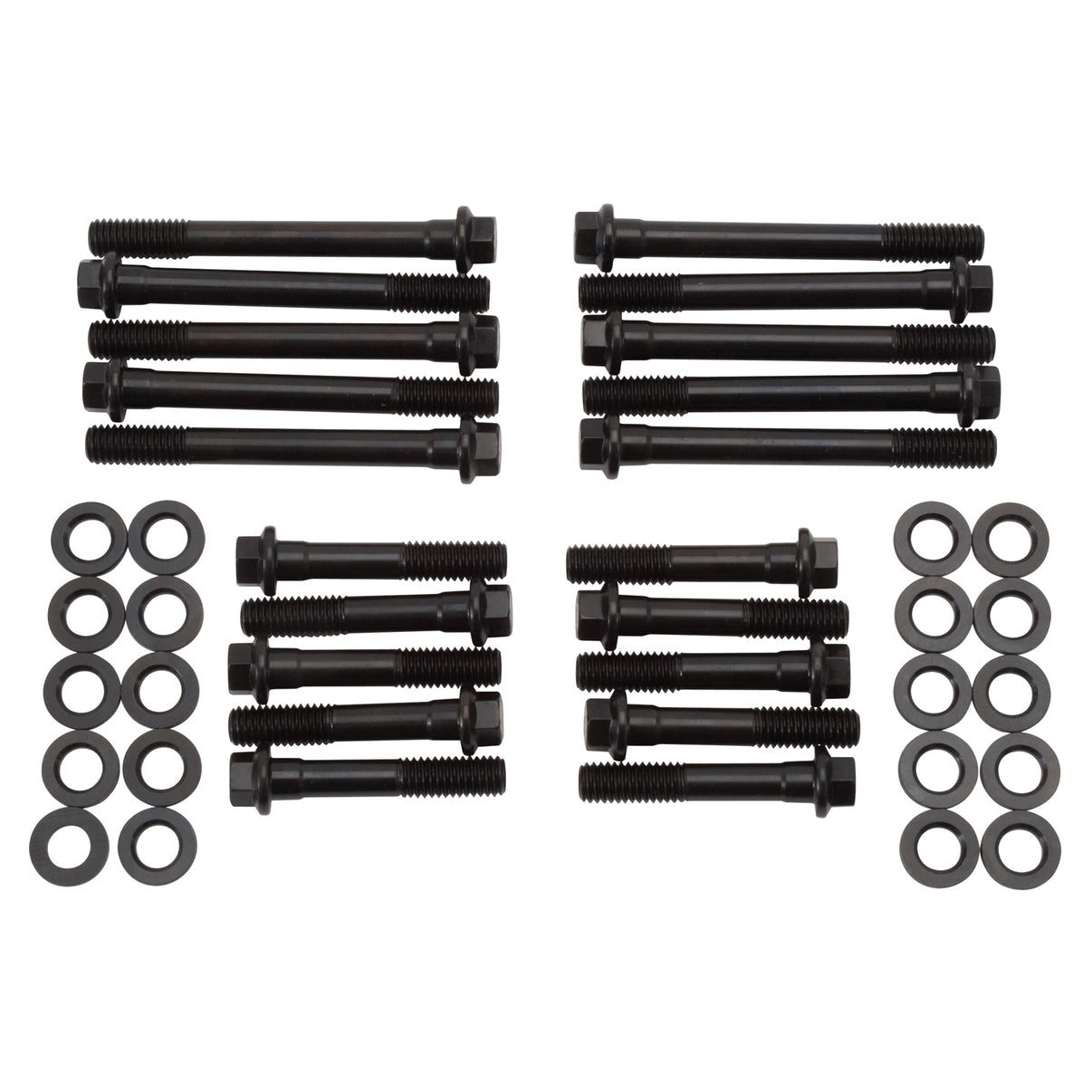

Edelbrock Edelbrock E-Series Cylinder Head Bolt Kit #85522 for Ford small-block engines 85522
Specifications:
| Length | (10) 2.50 in, (10) 4.00 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| 9 | Hex |
| 10 | 8740 Chromoly |
| 546 | Coarse |
| 557 | 0.4375 |
| 2596 | 2.5 |
| 3072 | Yes |
| Finish | Black Oxide |
| Grade Type | Performance |
| Quantity | Kit |
| Description_ABR | HeadBoltKit |
| Description_INV | Edelbrock Cylinder Head Bolt Kit #85522 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85522 for Ford small-block engines |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85522 for Ford small-block engines |
| Description_SHP | None |
| Description_ASM | Ford:Small-Block:289 (4.7L)-302 (5.0L) |
| Description_EXT | Edelbrock #85522 Head Bolt Kit is for 1963-96 S/B Ford 289/302 with Edelbrock 60217, 60219, 60225, 60229, 60249, 60255, 60259, 60319, 60329, 60349, 60359, 60367, 60369, 60379, 60389, 60399, 602479, & 602579. 7/16" Bolts with #9680 Bushings |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85522 is a high-quality set of bolts for use on Ford 289-302 blocks with standard 7/16-inch head bolt bosses. This E-Series kit is a perfect choice when upgrading to Edelbrock Performer or Performer RPM Cylinder Heads. This kit includes step-washers for use with aftermarket aluminum heads using -inch head bolt holes. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head. |
| Description_FAB | For Ford 289-302 with aluminum heads |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_FAB | Heat treating with rolled threads for superior form and strength |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | Edelbrock E logo stamped on bolt head. |
| Description_TRA | The Edelbrock #85522 is made specifically for small block Ford V8 |
| Description_TRA | Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers.- Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| Description_TRA | or 30, 60, 90, 100-110). Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. BOSS 302 CLONE ENGINES - Use Edelbrock Head Bolt Bushings with Integral Washers #9680 in place of washers supplied with your head bolt kit. Torque 7/16" bolts to 65-70 ft./lbs. in four steps (30, 40, 50, 65-70) following the factory tightening sequence. ALL ENGINES - A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_DEF | Engine Cylinder Head Bolt Set |
